基于逆序的城市数目与累积规模关系探讨

doi:10.11821/dlyj201508005

摘要/Abstract

摘要：

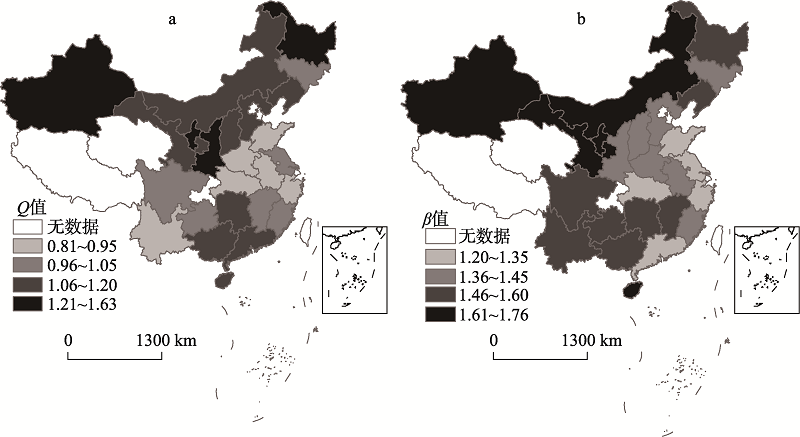

在解读区域城市体系规模结构特征的基础上,建立了用于分析逆向排序的城市累积规模与城市数目之间关系的模型。采用全国第六次人口普查数据,利用位序—规模法则与提出的逆序累积规模模型测度了2010年中国城市体系规模结构的省际差异及其空间分布特征,并对影响区域城市体系的地理因素进行了分析。研究发现：位序—规模法则在刻画区域城市体系规模特征方面存在一定的缺陷。对于明显存在首位分布、双中心城市、或者城市数量较少的城市体系描述不够准确,导致使用位序—规模法则得到的Q值和选取的地理变量之间没有必然的联系,在进行不同区域间城市体系结构比较研究中存在一定的局限性。整体来看,逆序累积规模模型的拟合效果要优于位序—规模法则。在使用位序—规模法则拟合效果不理想的情况下,逆序累积规模模型的普适性更强。β值与区域的经济总量、城市化率、人口密度以及复种指数存在较高的统计关系,在城市化进程中,应该根据各个区域的特征及其发展态势,探索与区域发展相适应的城市体系化道路。空间自回归模型与一般回归模型的统计结果表明：中国各省区城市体系的形成与演化在空间上联系很弱,基本上处于孤立发展的封闭状态,其原因可能与中国严格的户籍管理政策及地方保护主义有关。

关键词: 城市体系, 规模结构, 逆序累积规模, 位序—规模法则

Abstract:

Based on investigating and interpreting the characteristics of the size structure of regional urban system, this paper firstly aims to build a model on analyzing the relationships between reverse urban cumulative size and number of cities. Secondly, based on the sixth national population census data of 2010, traditional rank-size rule and the model of reverse cumulative size proposed in this paper are used to measure the inter-provincial differences and their spatial distribution characteristics of urban size structure in China. Thirdly, the geographic factors which have influence on regional urban system are discussed. The results show that the rank-size rule has few shortcomings in interpreting the characteristics of the size structure of regional urban system, especially for the urban system in which there is the distribution of primary city, two-centre city, or small number of cities. The shortcoming leads to the fact that there is no necessary linkage between the value of Q derived from the rank-size rule and the selected geographic variables. As a result, there are certain limitations in the comparative study between different regional urban system structures. Overall, the fitting provided by the model of reverse cumulative size given in this paper is better than that provided by the rank-size rule. Particularly, when the fitting provided by the rank-size rule is not ideal, the model of reverse cumulative size can overcome this shortcoming, and provides accurate fitting to more realistically and objectively reflect the characteristics of the size and structure of regional urban system. Moreover, the results also show that there is a close statistical relationship between the selected regional variables, such as regional economy, urbanization, population density and the composite index, and the value of β given by the model of reverse cumulative size. In the process of urbanization, path of the urban system coordinated with regional development should be explored in term of the tendency of development and characteristics of different regions. According to the statistics derived from the general regression model and spatial auto regression model, there is a weak spatial linkage between the formation and evolution of the regional urban systems of each province in China. That is to say, the formation and evolution of the regional urban systems of each province is in a close state of isolated development. The reason should be related to the strict administration and policies of household registration and the prevalence of local protectionism in China.

Key words: urban system, size structure, reverse cumulative size, rank-size rule

叶浩, 庄大昌, 陈少沛, 杨蕾. 基于逆序的城市数目与累积规模关系探讨[J]. 地理研究, 2015, 34(8): 1461-1470.

Hao YE, Dachang ZHUANG, Shaopei CHEN, Lei YANG. Derivation of relations between city reverse cumulative size and city number[J]. GEOGRAPHICAL RESEARCH, 2015, 34(8): 1461-1470.

图/表 7

图1

表1

图2

图3

表2

表3

表4

参考文献 32

[1]	新华社. 中央城镇化工作会议在北京举行. 人民日报, 2013-12-05(01).
	[Xinhua News Agency. New urbanization plan on the way. People's Daily, 2013-12-05(01).]
[2]	许学强, 周一星, 宁越敏. 城市地理学. 北京: 高等教育出版社, 1997.
	[Xu Xueqiang, Zhou Yixing, Ning Yuemin. Urban Geography.Beijing: Higher Education Press, 1997.]
[3]	Zipf G K.Human Behavior and the Principle of Least Effort. Cambridge: Addison-Wesley Press, 1949.
[4]	Rosen K T, Resnick M.The size distribution of cities: An examination of the Pareto law and primacy. Journal of Urban Economics, 1980, 8(2): 165-186.
[5]	Mandelbrot B B.The Fractal Geometry of Nature. New York: W. H. Freeman, 1983.
[6]	Duranton G.Urban evolutions: The fast, the slow, and the still. American Economic Review, 2007, 97(1): 197-221.
[7]	Giesen K, Zimmermann A, Suedekum J.The size distribution across all cities-double Pareto lognormal strikes. Journal of Urban Economics, 2010, 68(2): 129-137.
[8]	González V R.Deviations from Zipf's law for American cities: An empirical examination. Urban Studies, 2011, 48(5):1017-1035.
[9]	Gangopadhyay K, Basu B.City size distributions for India and China. Physica A: Statistical Mechanics and its Applications, 2009, 338(13): 2682-2688.
[10]	Rozenfeld H D, Rybski D, Gabaix X, et al.The area and population of cities: New insights from a different perspective on cities. American Economic Review, 2011, 101(5): 2205-2225.
[11]	Andres G L,HyeJin Y, Luı's M A B. The statistics of urban scaling and their connection to Zipf's Law. Plos One, 2012, 7(7): 1-11.
[12]	Mori T, Nishikimi K, Smith T E.The number-average size rule: A new empirical relationship between industrial location and city size. Journal of Regional Science, 2008, 48(1): 165-211.
[13]	Batty M.Rank clocks. Nature, 2006, 444(7119): 592-596.
[14]	Batty M.The size, scale, and shape of cities. Science, 2008, 319(8): 769-771.
[15]	谈明洪, 吕昌河. 以建成区面积表征的中国城市规模分布. 地理学报, 2003, 58(2): 285-293.
	[Tan Minghong, Lv Changhe.Distribution of China city size expressed by urban built-up area. Acta Geographica Sinica, 2003, 58(2): 285-293.]
[16]	周一星, 于海波. 中国城市人口规模结构的重构(一). 城市规划, 2004, 28(6): 49-55.
	[Zhou Yixing, Yu Haibo.Reconstructing city population size hierarchy of China based on the fifth census (I). Urban Planning, 2004, (6): 49-55.]
[17]	蒲英霞, 马荣华, 马晓冬, 等. 长江三角洲地区城市规模分布的时空演变特征. 地理研究, 2009, 28(1): 161-172.
	[Pu Yingxia, Ma Ronghua, Ma Xiaodong, et al.Spatio-temporal dynamics of city size distribution in Yangtze River Delta. Geographical Research, 2009, 28(1): 161-172.]
[18]	程开明, 庄燕杰. 中国中部地区城市体系规模分布及演进机制探析. 地理科学, 2013, 33(12): 1421-1427.
	[Chen Kaiming, Zhuang Yanjie.Size distribution of cities and evolution mechanism of urban system in middle area of China. Scientia Geographica Sinica, 2013, 33(12): 1421-1427.]
[19]	梁进社. 逆序的Beckmann城市等级—规模模式及其对位序—规模法则的解释力. 北京师范大学学报: 自然科学版, 1999, 35(1): 132-135.
	[Liang Jinshe.Beckmann urban class-size model in inverse order and it's power to explain rank-size rule, Journal of Bejing Normal University: Natural Science, 1999, 35(1): 132-135.]
[20]	魏守华, 张静, 汤丹宁. 长三角城市体系序位—规模法则的偏差研究. 上海经济研究, 2013, (10): 94-105.
	[Wei Shouhua, Zhang Jing, Tang Danning.A Study on the deviation of rank-size law among cities in the Chinese Yangtze River Delta. Shanghai Economic Research, 2013, (10): 94-105.]
[21]	刘继生, 陈彦光. 城镇体系等级结构的分形维数及其测算方法. 地理研究, 1998, 17(1): 82-88.
	[Liu Jisheng, Chen Yanguang.Fractal dimension and its measurement of a city and town hierarchy. Geographical Research, 1998, 17(1): 82-88.]
[22]	刘继生, 陈彦光. 城市地理分形研究的回顾与前瞻. 地理科学, 2000, 20(2): 166-171.
	[Liu Jisheng, Chen Yanguang.Fractal studies of urban geography in the past and future. Scientia Geographica Sinica, 2000, 20(2): 166-171.]
[23]	孙在宏, 袁源, 王亚华, 等. 基于分形理论的江苏省城市规模分布与异速生长特征. 地理研究, 2011, 30(12): 2163-2172.
	[Sun Zaihong, Yuan Yuan, Wang Yahua, et al.Research on city-size distribution and allometric growth in Jiangsu province based on fractal theory. Geographical Research, 2011, 30(12): 2163-2172.]
[24]	周彬学, 戴特奇, 梁进社, 等. 基于分形的城市体系经济规模等级演变研究. 地理科学, 2012, 32(2): 156-161.
	[Zhou Binxue, Dai Teqi, Liang Jinshe, et al.The evolution of the level of economic scale of urban system based on fractal analysis. Scientia Geographica Sinica, 2012, 32(2): 156-161.]
[25]	王茂军, 曹广忠, 赵群毅, 等. 基于距离与规模的中国城市体系规模结构. 地理研究, 2010, 29(7): 1257-1268.
	[Wang Maojun, Cao Guangzhong, Zhao Qunyi, et al.Study on structure of urban system in China from the angles of distance between cities and city population size. Geographical Research, 2010, 29(7): 1257-1268.]
[26]	刘妙龙, 陈雨, 陈鹏, 等. 基于等级钟理论的中国城市规模等级体系演化特征. 地理学报, 2008, 63(12): 1235-1245.
	[Liu Miaolong, Chen Yu, Chen Peng, et al.The time-scale effects of the city-size hierarchy in China based on rank-clock methodology. Acta Geographica Sinica, 2008, 63(12): 1235-1245.]
[27]	程开明, 庄燕杰. 城市体系位序—规模特征的空间计量分析: 以中部地区地级以上城市为例. 地理科学, 2012. 32(8):905-912.
	[Chen Kaiming, Zhuang Yanjie.Spatial econometric analysis of the rank-size rule for urban system: A case of prefectural-level cities in China's middle area. Scientia Geographica Sinica, 2012, 32(8): 905-912.]
[28]	Soo K T.Zipf's Law for cities: A cross-country investigation. Regional Science and Urban Economics, 2005, 35(7): 239-263.
[29]	吕作奎, 王铮. 中国城市规模分布及原因分析. 现代城市研究, 2008, 23(6): 81-87.
	[Lv Zuokui, Wang Zheng.Revisit of the size distribution of cities: The case of China. Modern Urban Research, 2008, 23(6): 81-87.]
[30]	盛科荣, 金耀坤, 纪莉. 城市规模分布的影响因素: 基于跨国截面数据的经验研究. 经济地理, 2013, 33(1): 66-71.
	[Sheng Kerong, Jin Yaokun, Ji Li.A study on the influencing factors of city size distribution based on country-level cross-sectional data. Economic Geography, 2013, 33(1): 66-71.]
[31]	谈明洪, 范存会. Zipf 维数与城市规模分布分维值得关系探讨. 地理研究, 2004, 23(2): 243-248.
	[Tan Minghong, Fan Cunhui.Relationship between Zipf dimension and fractal dimension of city size distribution. Geographical Research, 2004, 23(2): 243-248.]
[32]	Anselin L.Spatial externalities, spatial multipliers, and spatial econometrics. International Regional Science Review, 2003, 26(2): 153-166.

省区	位序—规模法则			逆序累积规模模型			省区	位序—规模法则				逆序累积规模模型
省区	Q值		R²	AIC		β值	R²	AIC	Q值	R²	AIC	β值	R²	AIC
河北	1.110	0.973	-0.749	1.426	0.988	-3.822	湖北	0.913	0.922	-0.020		1.339	0.985	-4.010
山西	1.067	0.978	-1.062	1.420	0.993	-4.410	湖南	1.108	0.799	1.437		1.502	0.992	-3.975
内蒙古	1.183	0.866	1.039	1.635	0.997	-4.541	广东	1.152	0.971	-0.575		1.334	0.982	-3.747
辽宁	1.174	0.941	0.160	1.450	0.970	-2.840	广西	1.153	0.974	-0.767		1.479	0.990	-3.936
吉林	0.966	0.940	-0.215	1.419	0.993	-4.403	海南	1.149	0.906	0.508		1.677	0.968	-2.244
黑龙江	1.202	0.971	-0.535	1.463	0.989	-3.857	四川	0.996	0.896	0.462		1.465	0.971	-2.825
江苏	1.003	0.991	-2.018	1.300	0.993	-4.959	贵州	0.997	0.902	0.302		1.529	0.995	-4.564
浙江	0.859	0.931	-0.290	1.340	0.983	-3.888	云南	0.899	0.791	1.023		1.506	0.952	-2.205
安徽	0.884	0.940	-0.419	1.367	0.997	-5.725	陕西	1.269	0.913	0.651		1.419	0.982	-3.555
福建	1.041	0.987	-1.687	1.392	0.987	-3.968	甘肃	1.119	0.871	0.869		1.613	0.991	-3.614
江西	0.980	0.663	1.866	1.573	0.964	-2.295	宁夏	1.623	0.985	-0.745		1.751	0.986	-2.747
山东	0.838	0.960	-0.883	1.297	0.996	-5.573	新疆	1.324	0.814	0.559		1.670	0.987	-3.058
河南	0.926	0.910	0.174	1.414	0.971	-3.002	平均值	1.077	0.912	-0.037		1.471	0.984	-3.750

Q	1.000
β	0.661	1.000
X₁	0.053	0.176	1.000
X₂	-0.533	-0.851	0.070	1.000
X₃	-0.658	-0.815	0.161	0.901	1.000
X₄	0.000	-0.430	-0.136	0.609	0.205	1.000
X₅	0.099	-0.341	-0.246	0.438	0.055	0.888	1.000
X₆	-0.501	-0.713	-0.729	0.567	0.559	0.257	0.245	1.000
X₇	-0.551	-0.707	-0.683	0.537	0.573	0.165	0.137	0.971	1.000
X₈	0.378	0.542	0.474	-0.567	-0.514	-0.339	-0.270	-0.755	-0.698	1.000
X₉	-0.342	-0.367	-0.208	0.500	0.553	0.116	0.037	0.559	0.563	-0.692	1.000
X₁₀	-0.202	0.137	0.263	-0.130	-0.041	-0.218	-0.073	-0.249	-0.255	-0.124	0.148	1.000
变量	Q	β	X₁	X₂	X₃	X₄	X₅	X₆	X₇	X₈	X₉	X₁₀

Q值回归	系数	标准差	t值	P	β值回归	系数	标准差	t值	P
常量	2.473	0.334	7.402	0.000	常量	2.727	0.313	8.703	0.000
X₃	-0.167	0.040	-4.191	0.000	X₃	-0.134	0.020	-6.638	0.000
-	-	-	-	-	X₅	-0.133	0.057	-2.344	0.030
-	-	-	-	-	X₆	-0.058	0.015	-3.732	0.001
-	-	-	-	-	X₉	0.139	0.055	2.514	0.020
统计检验	R²	lg L	AIC	SC	统计检验	R²	lg L	AIC	SC
统计值	0.433	16.009	-28.018	-25.580	统计值	0.856	41.475	-72.950	-66.856

Q值回归	系数	标准差	Z值	P	β值回归	系数	标准差	Z值	P
ρ	0.225	0.101	2.181	0.029	ρ	-0.031	0.039	-0.787	0.431
常量	2.384	0.297	8.024	0.000	常量	2.752	0.278	9.889	0.000
X₃	-0.184	0.037	-5.031	0.000	X₃	-0.124	0.022	-5.643	0.000
-	-	-	-	-	X₅	-0.135	0.050	-2.690	0.007
-	-	-	-	-	X₆	-0.062	0.015	-4.212	0.000
-	-	-	-	-	X₉	0.132	0.050	2.662	0.001
统计检验	R²	lg L	AIC	SC	统计检验	R²	lg L	AIC	SC
统计值	0.517	17.935	-29.871	-26.214	统计值	0.859	41.777	-71.555	-64.241
