羌塘高原降水空间分布及其变化特征

doi:10.11821/dlyj201711002

摘要/Abstract

摘要：

羌塘高原作为典型的青藏高原内流区,其降水变化直接影响自身及其周边区域冰冻圈与生态系统的变化。但由于站点观测资料的限制,羌塘高原降水时空格局尚不明确。因此,基于2015年羌塘高原9个自动观测站逐小时降水数据和5套降水格点产品以及1978-2015年西藏地区26个国家台站逐日降水数据,分析羌塘高原降水的空间分布和变化特征。结果表明：① 2015年羌塘高原核心区降水量和降水日数的均值分别约为154.9 mm和50天,其中,降水量约为东南边缘以及西藏地区多年均值的1/3和1/4。在空间上,降水量呈现东南多、北部少的特征,其中,昆仑山脉以北地区降水量最低,这从降水角度验证了该区域是“寒旱核心”的主要地区之一。② 雨季与干季分明。西北部雨季分布在6-8月,比东南边缘地区约短1~2个月;且前者降水量呈现单峰型而后者呈现双峰型。③ 在高原核心区,热带降雨测量计划（TRMM）3B43数据和全球降水量测量计划（GPM）IMERG算法数据高估了多数站点的年降水量,主要是高估了干季降水量所致。④ 1978-2015年羌塘高原改则和狮泉河站降水量和降水日数呈现微弱增加趋势,且强降水事件增多。

关键词: 羌塘高原, 降水, TRMM, GPM, 青藏高原

Abstract:

：Qiangtang Plateau (QP) refers as a typical interior region in the Tibetan Plateau, where the variability of precipitation is critical for cryospheric and ecosystems changes. However, the spatial distribution and variation of precipitation in the QP remains poorly understood due to lacking of precipitation gauges data. Based on precipitation data from nine automatic stations and five remote sensing and simulated precipitation products in 2015 and daily precipitation data from twenty-six meteorological stations during 1978-2015 in the QP and its vicinity, the spatial distribution and variation of precipitation were analyzed. Results showed that: (1) Annual precipitation and precipitation days were approximately 154.9 mm and 50 days in the core of the QP in 2015, respectively. Annual precipitation in the core of QP was approximately one third and one quarter of the average annual precipitation in the southeast of the QP and Tibet Autonomous Region, respectively. The lowest precipitation is observed on the north slope of the Kunlun Mountains, which confirms that this area is one of the main regions of 'cold dry core' in the perspective of precipitation. (2) The rainy season is clearly different from the dry season. The rainy season exists from June to August in the northern region, whose length is about 1-2 months shorter than that in the southern region. The distribution of precipitation in the northern region shows a single peak while that in the southern region shows a bimodal pattern. (3) TRMM (3B43) and GPM (IMERG) overestimated the annual precipitation in most sites of the QP, mainly due to the overestimation of precipitation in dry season. (4) A slight wetting process and an increasing trend of heavy rainfall events were detected in local area of the QP from 1978 to 2015.

Key words: Qiangtang Plateau, precipitation, TRMM, GPM, Tibetan Plateau

李兰晖, 刘琼欢, 张镱锂, 刘林山, 丁明军, 谷昌军. 羌塘高原降水空间分布及其变化特征[J]. 地理研究, 2017, 36(11): 2047-2060.

Lanhui LI, Qionghuan LIU, Yili ZHANG, Linshan LIU, Mingjun DING, Changjun GU. Spatial distribution and variation of precipitation in the Qiangtang Plateau[J]. GEOGRAPHICAL RESEARCH, 2017, 36(11): 2047-2060.

图/表 11

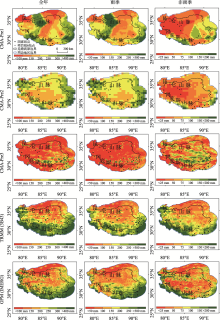

图1

表1

表2

本文使用的5套格点数据概况"

产品名称	空间分辨率（°）	时间分辨率	输入数据	发布单位	数据来源	参考文献
CMA-Pre1	0.25 $×$ 0.25	天	2419台站逐日降水数据	中国气象局国家气象信息中心（CMA）	http://data.cma.cn/data	沈艳等^[26]
CMA-Pre2	0.5 $× 0.5$	天	2472台站降水资料和GTOPO30数据	同上	同上	徐影等^[27]
CMA-Pre3	0.1 $× 0.1$	小时	CMORPH和3万多自动观测站逐小时降水数据	同上	同上	沈艳等^[21]
TRMM（3B43）	0.25 $×$ 0.25	月	-	日本国家空间发展署（NASDA）和美国国家航空航天局(NASA)	https://pmm.nasa.gov/data-access/downloads/trmm	齐文文等^[16]
GPM （IMERG）	0.1 $× 0.1$	月	-	同上	https://pmm.nasa.gov/data-access/downloads/gpm	Ma等^[20]

表2

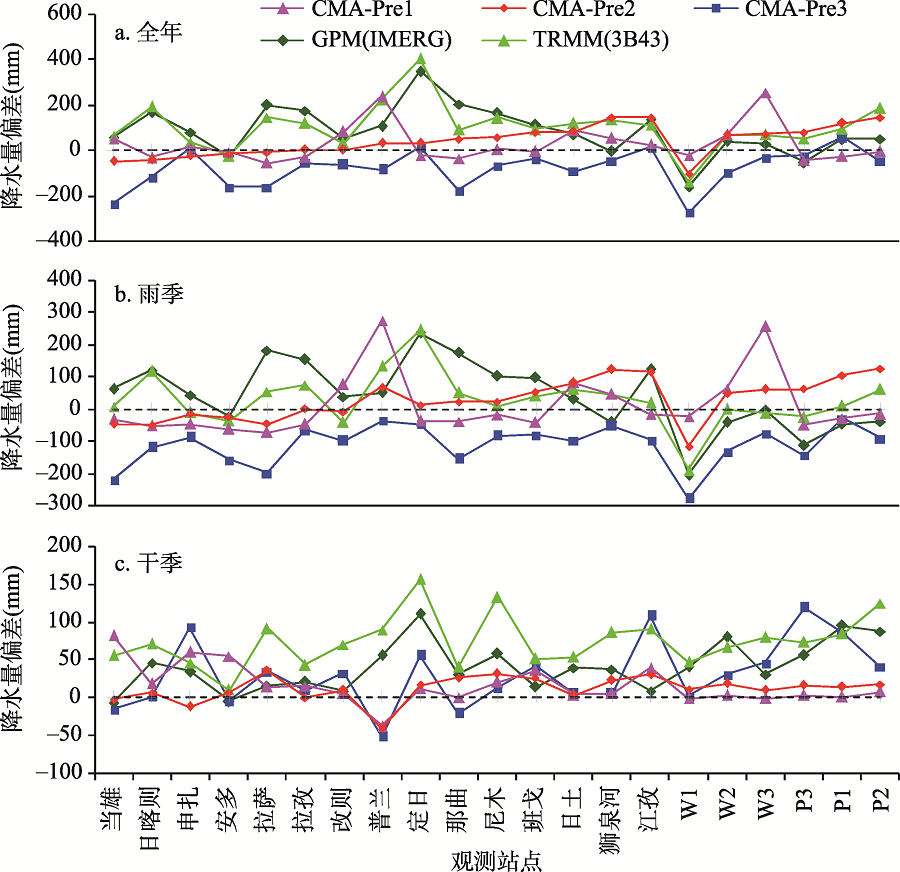

图2

图3

图4

图5

图6

图7

图8

图9

参考文献 38

[1]	Tong K, Su F, Yang D, et al.Evaluation of satellite precipitation retrievals and their potential utilities in hydrologic modeling over the Tibetan Plateau. Journal of Hydrology, 2014, 519: 423-437. doi: 10.1016/j.jhydrol.2014.07.044
[2]	Liu Q, Fu Y.An examination of summer precipitation over Asia based on TRMM/TMI. Science in China Series D: Earth Sciences, 2007, 50(3): 430-441. doi: 10.1007/s11430-007-0020-1
[3]	刘俊峰, 陈仁升, 卿文武, 等. 基于TRMM降水数据的山区降水垂直分布特征. 水科学进展, 2011, 22(4): 447-454.
	[Liu Junfeng, Chen Rensheng, Qing Wenwu, et al.Study on the vertical distribution of precipitation in mountainous regions using TRMM data. Advances in Water Science, 2011, 22(4): 447-454.]
[4]	张镱锂, 李炳元, 郑度. 论青藏高原范围与面积. 地理研究, 2002, 21(1): 1-8. doi: 10.3321/j.issn:1000-0585.2002.01.001
	[Zhang Yili, Li Bingyuan, Zheng Du.A discussion on the boundary and area of the Tibetan Plateau in China. Geographical Research, 2002, 21(1):1-8.] doi: 10.3321/j.issn:1000-0585.2002.01.001
[5]	孙鸿烈, 郑度, 姚檀栋, 等. 青藏高原国家生态安全屏障保护与建设. 地理学报, 2012, 67(1): 3-12. doi: 10.11821/xb201201001
	[Sun Honglie, Zheng Du, Yao Tandong, et al.Protection and construction of the National Ecological Security Shelter Zone on Tibetan Plateau. Acta Geographica Sinica, 2012, 67(1): 3-12.] doi: 10.11821/xb201201001
[6]	吴国雄, 张永生. 青藏高原的热力和机械强迫作用以及亚洲季风的爆发I. 爆发地点. 大气科学, 1998, 22(6): 22-35.
	[Wu Guoxiong, Zhang Yongsheng.Thermal and mechanical forcing of the Tibetan Plateau and the asian monsoon onset. Part I: situating of the onset. Scientia Atmospherica Sinica, 1998, 22(6): 22-35]
[7]	吴绍洪, 尹云鹤, 郑度, 等. 青藏高原近30年气候变化趋势. 地理学报, 2005, 60(1): 3-11.
	[Wu Shaohong, Yin Yunhe, Zheng Du, et al.Climate changes in the Tibetan Plateau during the last three decades. Acta Geographica Sinica, 2005, 60(1): 3-11.]
[8]	陈传友, 范云崎. 羌塘高原的河流、湖泊及水资源. 资源科学, 1983, 5(2): 38-44.
	[Chen Chuanyou, Fan Yunqi.Rivers, lakes and water resources in the Qiangtang Plateau. Resources Science, 1983, 5(2): 38-44.]
[9]	You Q, Min J, Zhang W, et al.Comparison of multiple datasets with gridded precipitation observations over the Tibetan Plateau. Climate Dynamics, 2015, 45(3-4): 791-806. doi: 10.1007/s00382-014-2310-6
[10]	刘桂芳, 卢鹤立. 1961-2005年来青藏高原主要气候因子的基本特征. 地理研究, 2010, 29(12): 2281-2288.
	[Liu Guifang, Lu Heli.Basic characteristics of major climatic factors on Qinghai-Tibet Plateau in recent 45 years. Geographical Research, 2010, 29(12): 2281-2288.]
[11]	丁明军, 李兰晖, 张镱锂, 等. 1971-2012年青藏高原及周边地区气温变化特征及其海拔敏感性分析. 资源科学, 2014, 36(7): 1509-1518.
	[Ding Mingjun, Li Lanhui, Zhang Yili, et al.Temperature change and its elevation dependency on the Tibetan Plateau and its vicinity from 1971 to 2012. Resources Science, 2014, 36(7): 1509-1518.]
[12]	Duan A, Xiao Z.Does the climate warming hiatus exist over the Tibetan Plateau?. Scientific Reports, 2015, 5: 13711. doi: 10.1038/srep13711 pmid: 4557067
[13]	Yao T, Thompson L, Yang W, et al.Different glacier status with atmospheric circulations in Tibetan Plateau and surroundings. Nature Climate Change, 2012, 2(9): 663-667. doi: 10.1038/nclimate1580
[14]	Lehnert L W, Wesche K, Trachte K, et al.Climate variability rather than overstocking causes recent large scale cover changes of Tibetan pastures. Scientific Reports, 2016, 6: 24367. doi: 10.1038/srep24367 pmid: 27073126
[15]	李兰晖, 刘林山, 张镱锂, 等. 青藏高原高寒草地物候沿海拔梯度变化的差异分析. 地理研究, 2017, 36(1): 26-36. doi: 10.11821/dlyj201701002
	[Li Lanhui, Liu Linshan, Zhang Yili, et al.Elevation-dependent alpine grassland phenology on the Tibetan Plateau. Geographical Research, 2017, 36(1): 26-36.] doi: 10.11821/dlyj201701002
[16]	齐文文, 张百平, 庞宇, 等. 基于TRMM数据的青藏高原降水的空间和季节分布特征. 地理科学, 2013, 33(8): 999-1005.
	[Qi Wenwen, Zhang Baiping, Pang Yu, et al.TRMM-data-based spatial and seasonal patterns of precipitation in the Qinghai-Tibet Plateau. Scientia Geographica Sinica, 2013, 33(8): 999-1005.]
[17]	吴祥定, 林正耀. 西藏的气候. 上海: 科学技术出版社, 1986.
	[Wu Xiangding, Lin Zhengyao. Climate of Xizang. Shanghai: Scientific and Technical Publishers, 1986.]
[18]	Liu L P, Feng J M, Chu R Z, et al.The diurnal variation of precipitation in monsoon season in the Tibetan Plateau. Advances in Atmospheric Sciences, 2002, 19(2): 365-378. doi: 10.1007/s00376-002-0028-6
[19]	林厚博, 游庆龙, 焦洋, 等. 基于高分辨率格点观测数据的青藏高原降水时空变化特征. 自然资源学报, 2015, 30(2): 271-281.
	[Lin Houbo, You Qinglong, Jiao Yang, et al.Spatial and temporal characteristics of the precipitation over the Tibetan Plateau from 1961 to 2010 based on high resolution grid-observation dataset. Journal of Natural Resources, 2015, 30(2): 271-281.]
[20]	Ma Y, Tang G, Long D, et al.Similarity and error intercomparison of the GPM and its predecessor-TRMM multisatellite precipitation analysis using the best available hourly gauge network over the Tibetan Plateau. Remote Sensing, 2016, 8(7): 569. doi: 10.3390/rs8070569
[21]	沈艳, 潘旸, 宇婧婧, 等. 中国区域小时降水量融合产品的质量评估. 大气科学学报, 2013, 36(1): 37-46.
	[Shen Yan, Pan Yang, Yu Jingjing, et al.Quality assessment of hourly merged precipitation product over China. Transactions of Atmospheric Sciences, 2013, 36(1): 37-46.]
[22]	Shen Y, Zhao P, Pan Y, et al.A high spatiotemporal gauge-satellite merged precipitation analysis over China. Journal of Geophysical Research: Atmospheres, 2014, 119(6): 3063-3075. doi: 10.1002/2013JD020686
[23]	郭燕红, 张寅生, 马颖钊, 等. 藏北羌塘高原双湖地表热源强度及地表水热平衡. 地理学报, 2014, 69(7): 983-992. doi: 10.11821/dlxb201407010
	[Guo Yanhong, Zhang Yansheng, Ma Yingzhao, et al.Surface heat source intensity and surface water/energy balance in Shuanghu, northern Tibetan Plateau. Acta Geographica Sinica, 2014, 69(7): 983-992.] doi: 10.11821/dlxb201407010
[24]	张镱锂, 李炳元, 郑度. 《论青藏高原范围与面积》一文数据的发表: 青藏高原范围界线与面积地理信息系统数据. 全球变化科学数据注册与出版系统, 2014. DOI: 10.3974/geodb.2014.01.12.v1, .
	[Zhang Yili, Li Bingyuan, Zheng Du. Datasets of the Boundary and Area of the Tibetan Plateau (DBATP), Global Change Research Data Publishing & Repository, 2014. DOI: 10.3974/geodb.2014.01.12.v1, .]
[25]	戴加洗, 周陆生, 吴永森, 等. 青藏高原气候. 北京: 气象出版社, 1990.
	[Dai Jiaxi, Zhou Lusheng, Wu Yongsen, et a1. Climate over Qinghai Xizang Plateau. Beijing: Meteorological Press, 1990.]
[26]	沈艳, 冯明农, 张洪政, 等. 我国逐日降水量格点化方法. 应用气象学报, 2010, 21(3): 279-286.
	[Shen Yan, Feng Mingnong, Zhang Hongzheng, et al.Interpolation methods of China daily precipitation data. Journal of Applied Meteorological Science, 2010, 21(3): 279-286.]
[27]	Xu Y, Gao X, Shen Y, et al.A daily temperature dataset over China and its application in validating a RCM simulation. Advances in Atmospheric Sciences, 2009, 26(4): 763-772. doi: 10.1007/s00376-009-9029-z
[28]	Mosier T M, Hill D F, Sharp K V.30-Arcsecond monthly climate surfaces with global land coverage. International Journal of Climatology. 2014, 34(7): 2175-2188. doi: 10.1002/joc.3829
[29]	Bai A, Liu C, Liu X.Diurnal variation of summer rainfall over the Tibetan Plateau and its neighboring regions revealed by TRMM multi-satellite precipitation analysis. Chinese Journal of Geophysics. 2008, 51(3): 704-714. doi: 10.1002/cjg2.1242
[30]	吴璐. 青藏高原与其东侧四川盆地降水日变化差异研究. 北京: 中国气象科学研究院硕士学位论文, 2012.
	[Wu Lu.Discrepancy of precipitation diurnal cycles between the Tibetan Plateau and its neighboring Sichuan Basin in warm season. Beijing: Master Dissertation of Chinese Academy of Meteorological Sciences, 2012.]
[31]	崔鹏, 陈晓清, 程尊兰, 等. 西藏泥石流滑坡监测与防治. 自然杂志, 2010, 32(1): 19-25. doi: 10.3969/j.issn.0253-9608.2010.01.005
	[Cui Peng,Chen Xiaoqing,Chen Zunlan, et al.Monitoring and prevention of debris-flows and landslides in Tibet. Chinese Journal of Nature, 2010, 32(1): 19-25.] doi: 10.3969/j.issn.0253-9608.2010.01.005
[32]	崔鹏, 苏凤环, 邹强, 等. 青藏高原山地灾害和气象灾害风险评估与减灾对策. 科学通报, 2015, 60(32): 3067-3077. doi: 10.1360/n972015-00849
	[Cui Peng, Su Fenghuan, Zou Qiang, et al.Risk assessment and disaster reduction strategies for mountainous and meteorological hazards in Tibetan Plateau. Chinese Science Bulletin, 2015, 60(32): 3067-3077.] doi: 10.1360/n972015-00849
[33]	邹新华, 刘峰贵, 张镱锂, 等. 基于县域尺度的青藏高原洪涝灾害风险分析. 自然灾害学报, 2013, 22(5): 181-188.
	[Zou Xinhua, Liu Fenggui, Zhang Yili, et al.County scale-based risk analysis of flood hazard in Qinghai-Tibet Plateau. Journal of Natural Disasters, 2013, 22(5): 181-188.]
[34]	Stocker, Thomas.Climate change 2013: The physical science basis: Working Group I contribution to the Fifth assessment report of the Intergovernmental Panel on Climate Change. Cambridge University Press, 2014.
[35]	Wang S, Zhang M, Wang B, et al.Recent changes in daily extremes of temperature and precipitation over the western Tibetan Plateau, 1973-2011. Quaternary International, 2013, 313: 110-117. doi: 10.1016/j.quaint.2013.03.037
[36]	石玉立, 宋蕾. 1998-2012年青藏高原TRMM 3B43降水数据的校准. 干旱区地理, 2015, 38(5): 900-911.
	[Shi Yuli, Song Lei.Calibration of TRMM 3B43 over Tibetan Plateau during 1998-2012. Arid Land Geography, 2015, 38(5): 900-911.]
[37]	江志红, 卢尧, 丁裕国. 基于时空结构指标的中国融合降水资料质量评估. 气象学报, 2013, 71(5): 891-900. doi: 10.11676/qxxb2013.076
	[Jiang Zhihong, Lu Yao, Ding Guoyu.Analysis of the high-resolution merged precipitation products over china based on the temporal and spatial structure score indices. Acta Meteorologica Sinica, 2013, 71(5): 891-900.] doi: 10.11676/qxxb2013.076
[38]	Ma J, Dong W, Wei Z, et al.Evaluating daily surface maximum temperature interpolation error by adding climate stations near border areas over China. International Journal of Climatology, 2015, 35(10): 2798-2808. doi: 10.1002/joc.4173

站点编号	经度（E）	纬度（N）	建站时间	海拔（m）	地形	植被类型
P1	81°40′	34°51′	2014年9月	5079	平地	垫状驼绒藜荒漠
P2	81°59′	34°56′	2014年9月	5185	平地	垫状驼绒藜荒漠
P3	83°13′	33°56′	2014年9月	5270	平地	羽柱针茅草原
W1	81°16′	34°46′	2013年9月	5017	平地	羽柱针茅草原
W2	84°10′	33°40′	2013年9月	4719	平地	羽柱针茅草原
W3	83°43′	33°30′	2012年8月	4945	平地	紫花针茅草原
