基于雨洪安全格局的城市低影响开发模式研究

doi:10.11821/dlyj201809004

Abstract

Abstract:

The main causes of urban waterlogging are decrease of urban storage land, the spillway network fragmented by construction land, overlap of stormwater storage and construction land, and so on. This paper, based on the three levels of substrate (source of runoff), corridor (runoff pathway) and patch (confluence land), attempts to set up a low-impact urban development mode to absorb extreme storm water through its inherent storage capacity of natural hydrological system: Suyuyuan, a typical area of Changsha in southern China was taken as an example to build the low-impact development mode by spatial analysis tools ArcGIS and in hydrological analysis module in soil conservation service (SCS) based on geomorphologic and hydrometeorological data. The waterlogging security pattern was built according to the flood submergence scope and runoff path simulation of extreme rainfall. According to the construction target of sponge city with annual runoff control rate of 85%, the source control water volume and corridor control water quantity were determined respectively, and then the patch control water quantity was obtained. It is estimated that the area should preserve 228.2 ha stormwater storage regulation patch and 1.075 million m³ controlled water volume, and 51.5 ha waterlogging corridors and 0.101 million m³ controlled water volume after the development. This method can provide a reference for exploring the new model of sponge city construction based on extreme climate waterlogging prevention and control.

Key words: waterlogging security pattern, waterlogging corridors and patches, low-impact development mode, Suyuyuan

Sheng JIAO, Jingyan HAN, Min ZHOU, Yong CAI, Zongwei HAN, Bei LI. Low-impact urban development mode based on waterlogging security pattern[J].GEOGRAPHICAL RESEARCH, 2018, 37(9): 1704-1713.

Figures/Tables 11

Fig. 1

Tab. 1

Fig. 2

Fig. 3

Fig. 4

Tab. 2

Fig. 5

Fig. 6

Tab. 3

Fig. 7

Fig. 8

References 28

[1]	孙喆. 北京中心城区内涝成因. 地理研究, 2014, 33(9): 1668-1679 .
	[Sun Zhe.Causal factors of local floods in Beijing central city. Geographical Research, 2014, 33(9): 1668-1679.]
[2]	车伍, 赵杨, 李俊奇, 等. 海绵城市建设指南解读之基本概念与综合目标. 中国给水排水, 2015, 31(8): 1-5 .
	[Che Wu, Zhao Yang, Li Junqi, et al.Explanation of sponge city development technical guide: Basic concepts and comprehensive goals. China Water and Wastewater, 2015, 31(8): 1-5.]
[3]	夏军, 石卫, 王强, 等. 海绵城市建设中若干水文学问题的研讨. 水资源保护, 2017, 33(1): 1-8 .
	[Xia Jun, Shi Wei, Wang Qiang, et al.Discussion of several hydrological issues regarding sponge city construction. Water Resources Protection, 2017, 33(1): 1-8.]
[4]	仇保兴. 海绵城市(LID)的内涵、途径与展望. 给水排水, 2015, (3): 1-7 .
	[Chou Baoxing.Connotation, approaches and prospect of LID. Water and Wastewater Engineering, 2015, (3): 1-7.]
[5]	彭建, 赵会娟, 刘焱序, 等. 区域生态安全格局构建研究进展与展望. 地理研究, 2017, 36(3): 407-419 . doi: 10.11821/dlyj201703001
	[Peng Jian, Zhao Huijuan, Liu Yanxu, et al.Research progress and prospect on regional ecological security pattern construction. Geographical Research, 2017, 36(3): 407-419.] doi: 10.11821/dlyj201703001
[6]	Jin J, Fu J, Wei Y, et al.Integrated risk assessment method of waterlog disaster in Huaihe River basin of China. Natural Hazards, 2015, 75: S155-S178. doi: 10.1007/s11069-014-1307-0
[7]	黄大鹏, 郑伟, 张人禾, 等. 安徽淮河流域洪涝灾害防灾减灾能力评估. 地理研究, 2011, 30(3): 523-530 . doi: 10.11821/yj2011030013
	[Huang Dapeng, Zheng Wei, Zhang Renhe, et al.Assessment of capacity of flood disaster prevention and reduction of Huaihe River basin in Anhui province. Geographical Research, 2011, 30(3): 523-530.] doi: 10.11821/yj2011030013
[8]	张正涛, 高超, 刘青, 等. 不同重现期下淮河流域暴雨洪涝灾害风险评价. 地理研究, 2014, 33(7): 1361-1372 . doi: 10.11821/dlyj201407015
	[Zhang Zhengtao, Gao Chao, Liu Qing, et al.Risk assessment on storm flood disasters of different return periods in Huaihe River basin. Geographical Research, 2014, 33(7): 1361-1372.] doi: 10.11821/dlyj201407015
[9]	张青萍, 李晓策, 陈逸帆, 等. 海绵城市背景下的城市雨洪景观安全格局研究. 现代城市研究, 2016, (7): 6-11 .
	[Zhang Qingping, Li Xiaoce, Chen Yifan, et al.Research on storm water management landscape security pattern in the background of sponge city. Modern Urban Research, 2016, (7): 6-11.]
[10]	殷杰. 基于高精度地形表面模型的城市雨洪情景模拟与应急响应能力评价. 地理研究, 2017, 36(6): 1138-1146 . doi: 10.11821/dlyj201706011
	[Peng Jie.Assessment of capacity of flood disaster prevention and reduction of Huaihe River basin in Anhui province. Geographical Research, 2017, 36(6): 1138-1146.] doi: 10.11821/dlyj201706011
[11]	潘影, 刘云慧, 王静, 等. 基于CLUE-S模型的密云县面源污染控制景观安全格局分析. 生态学报, 2011, 31(2): 529-537 .
	[Pan Ying, Liu Yunhui, Wang Jing, et al.Non-point pollution control for landscape conservation analysis based on CLUE-S simulations in Mi Yun county. Acta Ecologica Sinica, 2011, 31(2): 529-537.]
[12]	徐宗学. 水文模型:回顾与展望. 北京师范大学学报: 自然科学版, 2010, 46(3): 278-289 .
	[Xu Zongxue.Hydrological models: Past present and future. Journal of Beijing Normal University: Natural Science, 2010, 46(3): 278-289.]
[13]	Löwe R, Urich C, Domingo N S, et al.Assessment of urban pluvial flood risk and efficiency of adaptation options through simulations: A new generation of urban planning tools. Journal of Hydrology, 2017, (550): 355-367.
[14]	Zope P E, Eldho T I, Jothiprakash V.Hydrological impacts of land use-land cover change and detention basins on urban flood hazard: A case study of Poisar River basin, Mumbai, India. Natural Hazards, 2017, 87(3): 1267-1283.
[15]	俞孔坚, 李迪华, 袁弘, 等. “海绵城市”理论与实践. 城市规划, 2015, 39(6): 26-36 . doi: 10.11819/cpr20150605a
	[Yu Kongjian, Li Dihua, Yuan Hong, et al."Sponge city": Theory and practice. City Planning Review, 2015, 39(6): 26-36.] doi: 10.11819/cpr20150605a
[16]	Jiao S, Zhang X L, Xu Y.A review of Chinese land suitability assessment from the rainfall-waterlogging perspective: Evidence from the Su Yu Yuan area. Journal of Cleaner Production, 2017, 144: 100-106.
[17]	王峰, 颜正惠, 黄伟乐, 等. 城市雨水内涝成因及对策. 中国给水排水, 2012, 28(12): 15-17 . doi: 10.3969/j.issn.1000-4602.2012.12.004
	[Wang Feng, Yan Zhenghui, Huang Weile, et al.Causes and solutions of urban rainstorm waterlogging. China Water and Wastewater, 2012, 28(12): 15-17.] doi: 10.3969/j.issn.1000-4602.2012.12.004
[18]	张冬冬, 严登华, 王义成, 等. 城市内涝灾害风险评估及综合应对研究进展. 灾害学, 2014, 29(1): 144-149 . doi: 10.3969/j.issn.1000-811X.2014.01.026
	[Zhang Dongdong, Yan Denghua, Wang Yicheng, et al.Research progress on risk assessment and integrated strategies for urban pluvial flooding. Journal of Catastrophology, 2014, 29(1): 144-149.] doi: 10.3969/j.issn.1000-811X.2014.01.026
[19]	陈昕, 彭建, 刘焱序, 等. 基于“重要性—敏感性—连通性”框架的云浮市生态安全格局构建. 地理研究, 2017, 36(3): 471-484 .
	[Chen Xin, Peng Jian, Liu Yanxu, et al.Constructing ecological security patterns in Yunfu city based on the framework of importance-sensitivity-connectivity. Geographical Research, 2017, 36(3): 471-484.]
[20]	Quan R S.Risk assessment of flood disaster in Shanghai basedon spatial-temporal characteristics analysis from 251 to 2000. Environment Earth Science, 2014, 72: 4627-4638.
[21]	郑长统, 梁虹, 舒栋才, 等. 基于ArcGIS和RS的喀斯特流域SCS产流模型应用. 地理研究, 2011, 30(1): 185-194 . doi: 10.11821/yj2011010018
	[Zheng Changtong, Liang Hong, Shu Dongcai, et al.Study of karst basin SCS runoff model based on ArcGIS and RS. Geographical Research, 2011, 30(1): 185-194.] doi: 10.11821/yj2011010018
[22]	United States Department of Agriculture. National Engineering Handbook.Washington DC: Natural Resources Conservation Service., 2015-11.
[23]	许彦, 潘文斌. 基于ArcView的SCS模型在流域径流计算中的应用. 水土保持研究, 2006, 13(4): 176-179 . doi: 10.3969/j.issn.1005-3409.2006.04.056
	[Xu Yan, Pan Wenbin.SCS model for watershed runoff calculation in ArcView. Research of Soil and Water Conservation, 2006, 13(4): 176-179.] doi: 10.3969/j.issn.1005-3409.2006.04.056
[24]	王瑾杰, 丁建丽, 张成. 普适降雨-径流模型SCS-CN的研究进展. 中国农村水利水电, 2015, (11): 43-47 . doi: 10.3969/j.issn.1007-2284.2015.11.011
	[Wang Jinjie, Ding Jianli, Zhang Cheng.A review of universal rain-runoff model about SCS-CN. China Rural Water and Hydropower, 2015, (11): 43-47.] doi: 10.3969/j.issn.1007-2284.2015.11.011
[25]	焦胜, 李振民, 高青, 等. 景观连通性理论在城市土地适宜性评价与优化方法中的应用. 地理研究, 2013, 32(4): 720-730 . doi: 10.11821/yj2013040015
	[Jiao Sheng, Li Zhenmin, Gao Qing, et al.The application of landscape connectivity theory in urban ecology suitability assessment and optimization. Geographical Research, 2013, 32(4): 720-730.] doi: 10.11821/yj2013040015
[26]	邹宇, 许乙青, 邱灿红. 南方多雨地区海绵城市建设研究: 以湖南省宁乡县为例. 经济地理, 2015, 35(9): 65-71 . doi: 10.15957/j.cnki.jjdl.2015.09.009
	[Zou Yu, Xu Yiqing, Qiu Canhong.The research on sponge city construction in southern hilly area: A case study of Ningxiang county in Hunan province. Economic Geography, 2015, 35(9): 65-71.] doi: 10.15957/j.cnki.jjdl.2015.09.009
[27]	上海市建设和交通委员会. 室外排水设计规范 . 北京: 中国计划出版社, 2016 .
	[Shanghai Construction and Transportation Committee. Code for Design of Outdoor Wastewater Engineering. Beijing: China Planning Press, 2016.]
[28]	中华人民共和国住房和城乡建设部. 中国城市建设统计年鉴(2015年) . 北京: 中国计划出版社, 2016 .
	[Minsty of Housing and Urban-Rural Development of the People's Republic of China. Minsty of Housing and Urban-Rural Development Statistical Yearbook (2015). Beijing: China Planning Press, 2016.]

下垫面类型	CN值
下垫面类型	A	B	C	D
水域道路广场工业用地	100 98 81	100 98 88	100 98 91 90	100 98 93 92
城市居住用地	77	85	100 98 91 90	100 98 93 92
村庄建设用地	59	74	82	86
森林	25	55	70	77
裸地	77	86	91	94
灌木林地	57	73	82	86
耕地	62	71	78	81

雨洪廊道等级	径流长度/m	分布情况	作用
一级廊道	45813	数量多,分布较广,树状径流网络源头	汇聚雨洪,就地滞蓄小型降水,控制大雨初级阶段
二级廊道	26957	数量较多,跨越许多现状水域,连接上下游径流网络,分布较广	容纳一级溢流,进一步缓解雨洪问题,调节小型雨水,超标径流向三级廊道溢流
三级廊道	7081	数量较少,主要分布在研究区北面以及南面径流网络中游	容纳二级廊道溢流,加强各调蓄设施之间的联系,调节中型雨水,超标径流向四级廊道溢流
四级廊道	5164	有两条,主要分布在研究区南面径流网络下游	容纳三级廊道溢流,超标径流向区域自然水体排放,调节控制大暴雨

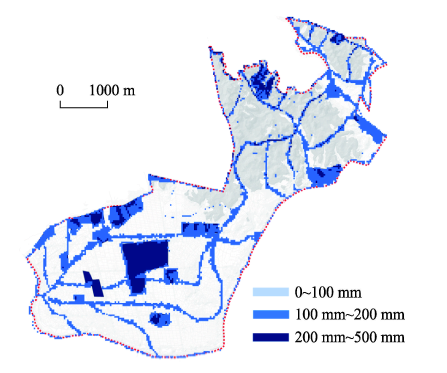

低影响开发模式	作用	雨洪安全格局	规模		面积占比/%	低影响开发设施	控制水量/万m³
低影响开发模式	作用	雨洪安全格局	面积/hm²	个数	面积占比/%	低影响开发设施	控制水量/万m³
基底	根据年径流总量控制率的目标,进行源头控制雨水	场地	1957.4	3	87.5	下凹式绿地、雨水桶等	43.4
次要廊道	进行分散式调蓄,滞蓄中小雨水	一二级雨洪廊道	24.6	27	1.1	原有自然场地,深度100 mm~200 mm	4.8
主要廊道	起泄洪作用,加强各个调蓄设施之间的联系,改善生态环境	三四级雨洪廊道	26.8	6	1.2	原有自然场地,深度100 mm~200 mm	5.3
雨洪斑块	结合现状坑塘设置调蓄设施,增大其水域面积,通过自然过程回补水源分泄雨洪,削减洪峰或短期阻滞雨洪	雨洪淹没区	228.2	17	10.2%	季节性湿地、湿塘、蓄水池等调蓄设施	107.5
