黔桂喀斯特山区植被变化及其地形效应
刘梁美子1,2,, 占车生1,, 胡实1, 董宇轩3
1. 中国科学院地理科学与资源研究所,陆地水循环及地表过程重点实验室,北京 100101
2. 中国科学院大学,北京 100049
3. 北京师范大学水科学研究院,北京 100875

作者简介:刘梁美子(1995- ),女,湖北黄冈人,硕士,主要从事水文与水资源学研究。E-mail: liuliangmeizi17@mails.ucas.ac.cn

通讯作者:占车生(1975- ),男,湖北黄冈人,研究员,主要从事流域水循环模拟研究。E-mail: zhancs@igsnrr.ac.cn
摘要

为科学认识喀斯特山区植被变化及其地形效应,基于MODIS NDVI数据,采用统计学方法,系统分析2000-2016年喀斯特山区植被变化的时空特征及其与海拔、地形起伏度、坡度、坡向的关系。研究表明,黔桂喀斯特山区植被绿度中部高,西北及东南较低,年均NDVI随海拔和地形起伏度的增加呈单峰曲线变化,峰值位于400~600 m,NDVI随坡度和坡向的变化不明显;2000-2016年大部分地区NDVI呈增长趋势,其中超过20%的地区呈显著增长(P<0.05),年均增长率约0.0018。西部和东南部绿化趋势最为显著,仅在东北和中东部,NDVI呈下降趋势;NDVI呈增长趋势的比例随海拔的增加而增加,说明该喀斯特山区近年来植被恢复向着良性化方向发展,高海拔植被恢复速率更快,低海拔缓坡处的植被生态建设需要进一步加强。

关键词: NDVI; 植被变化; 地形效应; 喀斯特山区;
Vegetation change and its topographic effects in the karst mountainous areas of Guizhou and Guangxi
LIU Liangmeizi1,2,, ZHAN Chesheng1,, HU Shi1, DONG Yuxuan3
1. Key Laboratory of Water Cycle and Related Land Surface Processes, Institute of Geographic Sciences and Natural Resources Research, CAS, Beijing 100101, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. College of Water Sciences, Beijing Normal University, Beijing 100875, China
Abstract

Rocky desertification is one of the most severe ecological issues that restrict the sustainable development of karst area in southwestern China. Compared with other ecosystems, mountain ecosystem is more sensitive to climate change due to its complex topography. Understanding the variation of vegetation growth associated to topographic factors is critical to promote ecological management in karst mountainous areas. Based on the Moderate Resolution Imaging Spectroradiometer Normalized Difference Vegetation Index (MODIS NDVI) data from 2000 to 2016, the spatial-temporal variation of NDVI in the karst mountainous area of Guizhou and Guangxi was analyzed. The topographical factors, including altitude, slope gradient, aspect and relief amplitude were introduced to examine the response of vegetation variation to topographical factors. The results showed that NDVI in the middle of karst mountainous area was higher than that in the northwest and southeast. Averaged NDVI during growing season showed a single-peak curve distribution with altitude, with the largest value (0.67) at an elevation of 400-600 m. However, no significant difference was found along the slope and aspect gradient. A greening trend occurred in the karst mountainous area, with an averaged increasing rate of 0.0018 yr-1, illustrating that the vegetation restoration in recent years tended to be better. More than 75% of the study area showed an increasing trend of NDVI, and about 20% of the study area, distributed in the western and southeastern parts of the region (southwest Guizhou and central Guangxi), performed a significant increase. Pixels with a decreasing trend of NDVI were only observed in the northeast and middle-eastern parts. The percentage of pixels with a significant increasing trend increased with the elevation gradient. The increased rate is higher at high altitude than that at low altitude, indicating that the ecological construction of vegetation at low altitude with gentle slope should be strengthened. These conclusions provide a scientific basis for the comprehensive treatment of rocky desertification and improvement of fragile ecological environment in the karst mountainous area in a certain sense.

Keyword: NDVI; vegetation changes; topographic effects; karst mountainous area;

石漠化是中国西南喀斯特山区最严重的生态问题[1]。如何对喀斯特山区植被实行保护与恢复,有效遏制石漠化、控制水土流失,已成为改善喀斯特生态环境的重要内容[2]

植被是陆地生态系统中的重要成分,反应区域石漠化变化的重要信息[3]。地形因子是影响植被形成、覆盖的最主要因素之一[4]。其中,海拔高度影响土壤的垂直地带性[5];坡度和坡向能够影响地表径流、日照时长、湿度、温度等[6];地形起伏度也会影响区域小气候。各地形要素之间相互作用,共同影响植被的生长条件进而影响植被覆盖[7]。已有大量研究分析地形因子与植被覆盖[4]、植被生产力[8]、植被多样性[6]的关系。在不同的研究区,影响植被分布的地形因子各不相同[7]。如在巴西东南部的大西洋热带雨林,海拔高度和坡度是影响植被分布的主要因素[9];以色列北加利利山的植被分布格局受坡度和坡向影响[10]。此外,同一地形因子对植被分布的影响在不同地区也不尽相同,如在北京百花山,海拔1500~1800 m内,植被丰富度最高[6];而在祁连山,受降水增多和温度升高的影响,植被覆盖在2700~3600 m范围内呈现显著增加趋势[11]。在美国俄勒冈州东南部,坡度是影响植被多样性的唯一非土壤因子[12],但在中国西南地区的干热河谷,坡度对植被覆盖的影响十分微弱[13];在新墨西哥北部的雷东多山,由于北坡接收的太阳辐射少于东坡,抑制了植被生长,使得北坡的森林覆盖度低于东坡[14]。而在北半球干旱条件下则得到相反的结论,阴坡因为日照时数较阳坡短,蒸发过程弱,水分较好,植被长势也更为良好[15]。在喀斯特山区,由于地形差异导致的能量分配[14]、土壤性质[16]不同,会影响区域植被分布格局的差异。因此,探索喀斯特山区近年来的植被变化情况及其受地形的控制效应,对未来国家石漠化山区生态保护政策的制定具有科学指导意义。

遥感影像由于空间尺度大、时间序列长、间隔周期短的特点,已成为大尺度植被动态变化研究的重要数据源之一[17]。其中,运用归一化植被指数(The Normalized Difference Vegetation Index,NDVI)对植被生长的动态监测在全球尺度、洲际尺度和区域尺度均较为广泛[18]。但目前国内有关植被动态变化的研究重点区域是西北、东北以及包括青藏高原、蒙古高原、黄土高原在内的三大高原[19],有关西南喀斯特山区的研究虽有所涉及,也大多以省域县域为研究单元[20,21],鲜有以自然地貌划分的研究区,此外,以往的研究大多聚焦于气候变化和人类活动对植被变化的影响[22,23,24],但在生境脆弱、地形复杂的喀斯特山区,除气候因素和人类活动之外,植被变化也受特殊地形影响[2]。本文针对喀斯特山区这一独特地形,同时从海拔高度、坡度、坡向、地形起伏度四个重要的地形因子出发,以栅格为基本计算单元,探寻喀斯特山区植被的时空变化规律及其与地形因子的相互关系,提出可能的驱动因子,明确植被恢复显著区以及仍需加强生态治理的区域,为喀斯特山区石漠化综合治理,以及脆弱生态环境的改善提供科学依据。

1 研究方法与数据来源
1.1 研究区概况

黔桂喀斯特山区(22°05′N~28°15′N、104°15′E~110°25′E),位于中国西南地区,包括贵州中南部和广西中西部,具体含贵阳、六盘水、安顺和河池的全部地区,黔西南、黔南、毕节、百色、柳州、来宾、贵港、崇左和南宁的大部份地区,以及铜仁、遵义和黔东南的小部份地区,共107个县,总面积252769.21 km2。东接湖南、西邻云南、北连四川,地势自西北向东南逐渐降低,最高海拔为2800 m(图1a),山地众多,平原较少。属于亚热带季风气候,年平均气温多在15 ℃以上,年降水超过1200 mm,雨季明显,受季风影响多集中在4-10月。

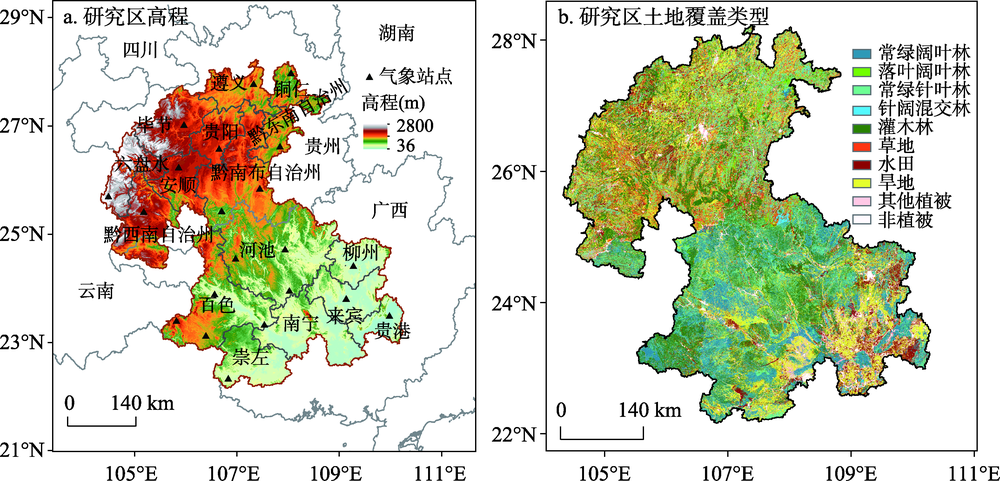

图1 研究区高程及土地覆盖类型 Fig. 1 Elevation and land cover types in the karst mountainous areas

1.2 数据来源及处理

本文中的基础数据主要包括地理数据和遥感数据。其中,遥感数据来源于MODIS NDVI16天最大化合成的MOD13Q1数据(http://modis.gsfc.nasa.gov/data/dataprod/mod13.php),空间分辨率250 m。所有的遥感数据均利用SG滤波法对数据进行降噪,将NDVI绝对值(最大年NDVI值-最小年NDVI值)小于0.1和不在0~1范围内的网格赋空值,因为这些格网分别主要是建设用地和水域。

文中使用的地理数据主要包括数字高程模型(DEM)和土地利用的数据。DEM数据通过中国科学院计算机网络信息中心国际科学与技术数据镜像站点(http://www.gscloud.cn)获得,空间分辨率为90 m,为与MODIS NDVI数据精度一致,重采样转换为250 m,同时提取喀斯特山区的坡度、坡向信息,地形起伏度的提取基于变点分析法[25,26,27]。文中的海拔以200 m一个间隔,由于2000 m以上格点较少,在NDVI显著变化格点沿海拔梯度分布规律的分析时可能造成结果的不合理,因此将其合并为一个等级,共11级。地形起伏度按100 m间隔划分,起伏度700 m以上的格点并为一类,共8类。坡度的分级与海拔、地形起伏度相似,以2.5°等间隔划分,25°以上合并,计11类。坡向按4方向分类法分为阳坡、阴坡、半阳坡和半阴坡[28]

土地利用类型数据(LUCC)由中国科学院遥感与数字地球研究所基于MODIS生态系统分类标准进行遥感解译和分类得到,空间分辨率为30 m。本文选取其2010年最新的分类数据进行分析,为保证各类型数据精度的一致性,按各土地利用类型最大面积占比将30 m的数据重采样至250 m。喀斯特山区的植被覆盖类型主要包括以下8种:常绿阔叶林、落叶阔叶林、常绿针叶林、针阔混交林、灌木林、草地、水田、旱地,占比极小的植被类型,包括稀疏林、稀疏草地、落叶阔叶灌木林、灌木绿地等全部归入“其他植被”类,不作后续分析。文中所有数据的统一投影坐标为兰勃特方位等积投影。

1.3 研究方法

1.3.1 遥感数据预处理 由于冰雪、气溶胶等干扰,NDVI数据值可能出现缺失或异常。因此,文中使用的NDVI数据经过滤波平滑处理,以消除大气带来的噪音。本文采用的是Chen等改进的SG滤波方法[29],在该算法中引入了拟合影响因子Fk,通过比较前后相邻计算得到的Fk,确定拟合是否达到最佳而停止。Fk是第k次平滑的拟合因子,它是对观测值与真值间接近程度的刻画,当它达到局部最小时(即满足公式1时),标志这一序列点的拟合值与真值达到了最接近的程度,计算终止。

F k - 1 F k F k + 1 (1)

Fk的计算如下:

F k = i = 1 n N i k + 1 - N i 0 × W i (2)

式中: N i k + 1 是第i个遥感数据值第K次平滑之后的值,其计算如式(3)所示;Wi是第i个遥感数据的权重,计算如式(4)所示:

N i k + 1 = N i 0 , N i 0 N i tr N i tr , N i 0 < N i tr (3)

W i = 1 , N i 0 N i tr 1 - d i d max , N i 0 < N i tr (4)

式中:Ni是第i个遥感数据的原始值; N i tr 是利用SG滤波平滑之后的遥感数据;di是原始遥感数据和平滑之后数据之间的差值,即 d i = N i 0 - N i tr ;dmax是原始遥感数据和平滑之后数据之间的最大差值。

1.3.2 一元线性回归分析法 为了拟合喀斯特山区2000-2016年归一化植被指数(NDVI)的变化趋势,采用一元线性回归分析方法[30],即最小二乘法,基于栅格尺度分析植被覆盖的年际变化。

斜率θ的计算公式如下:

θ = n × i = 1 n i × NDV I i - i = 1 n i i = 1 n NDV I i n × i = 1 n i 2 - i = 1 n i 2 (5)

式中:i表示年份序号;NDVIi表示第i年的NDVI值;得到的θ表示时间序列上NDVI的变化趋势。若θ>0,近17年NDVI增加,区域植被有绿化趋势;若θ<0,区域植被有退化趋势。

NDVI变化趋势的显著性检验以F检验为基础进行,统计量F的计算公式如下:

F = U Q × ( n - 2 ) U = i = 1 n ( y ˆ i - y ̅ ) 2 Q = i = 1 n ( y i - y ˆ i ) 2 (6)

式中:U表示误差平方和,反映自变量时间对因变量NDVI的作用程度;Q表示回归平方和,又叫剩余平方和或残差平方和,反映其他因素的作用引起的因变量NDVI的波动程度;yi表示年份i的NDVI观测值; y ˆ i y ̅ 分别为NDVI的回归值和平均值;n为年份数。

后续统计分析中,不同植被类型随海拔显著变化格点面积占比指的是各海拔范围内各植被类型显著变化的格点与该植被类型在该海拔所有格点数的比值(地形起伏度、坡度、坡向同)。

2 结果分析
2.1 NDVI的空间格局

2.1.1 年均NDVI的空间格局 黔桂喀斯特山区多年平均NDVI为0.63(图2),略高于贵州省年均值(0.57)[31],呈现中部高,西北、东南低的格局。NDVI值大于0.7的地区大约占研究区总面积的十分之一,主要分布于海拔较低的广西西北部附近(河池市、百色市),植被类型以常绿阔叶林为主;而在贵州中部、广西南部、东部极少部分区域,NDVI值小于0.4,不足研究区总面积的千分之一。

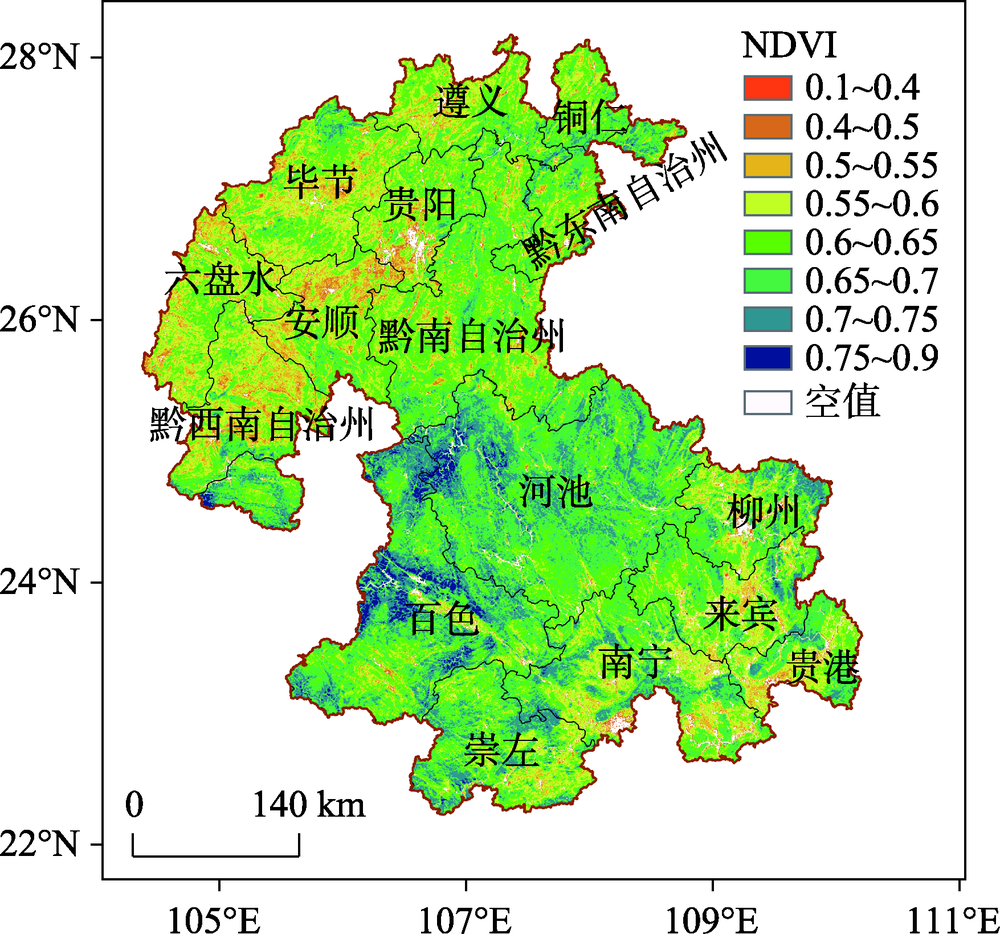

图2 2000-2016年喀斯特山区NDVI的空间分布 Fig. 2 Spatial distribution of annual NDVI in karst mountainous areas from 2000 to 2016

2.1.2 平均NDVI与海拔高度、地形起伏度 NDVI变化随海拔高度和地形起伏度呈单峰曲线,峰值分别在400~600 m和400~500 m左右,不同植被类型NDVI随海拔高度、地形起伏度的变化趋势一致,森林植被的NDVI值较其他植被类型高(图3、图4)。地形起伏度400~500 m的区域大多位于海拔400~600 m范围内,海拔400~600 m处,地势相对平坦,以常绿阔叶林、常绿针叶林和针阔混交林为主,植被的热量、光照、水分等条件均比较充足[32],且地处广西境内的山区,城镇化速率缓慢,植物的生长环境良好,植被覆盖率较大,NDVI较高[33]。随着海拔升高,地势变陡,水热条件相对较差,植被生长受到抑制,NDVI降低。当海拔高于2400 m时,植被生长受山顶效应影响,由于光照强,风速大,蒸散发强烈,且土层瘠薄,植被一旦遭到破坏,恢复极难。

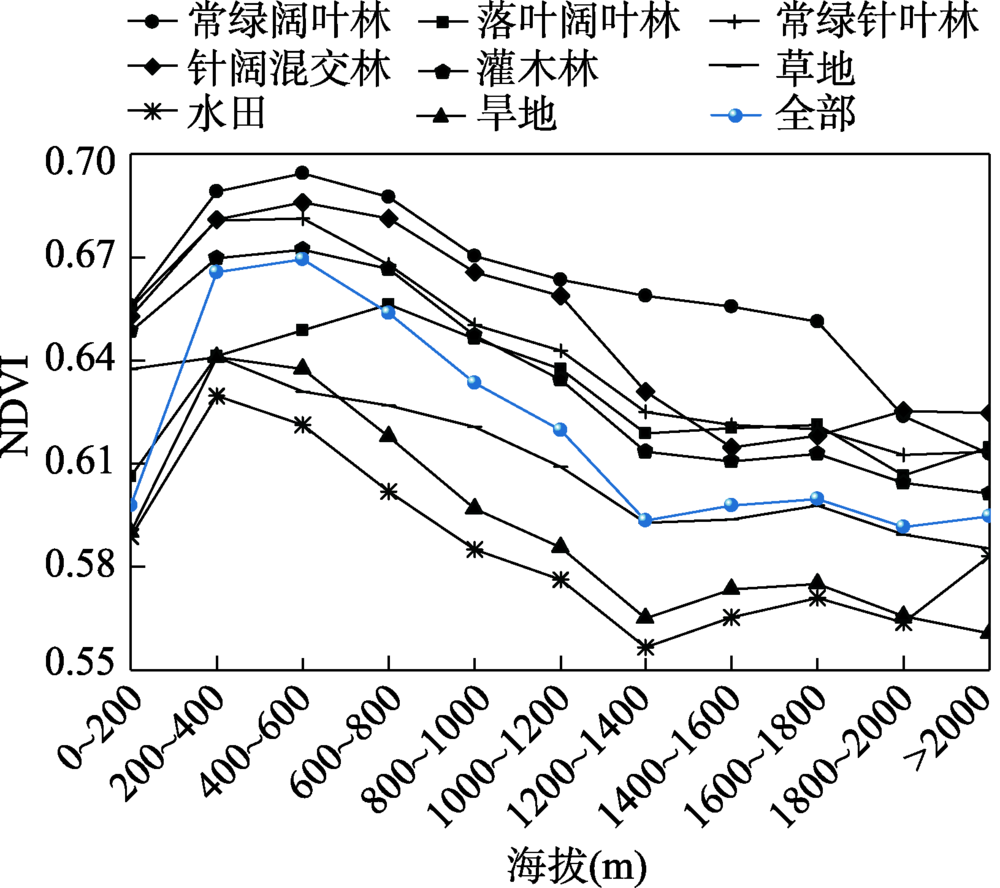

图3 NDVI在不同海拔上的分布状况 Fig. 3 The distribution of NDVI at different altitudes

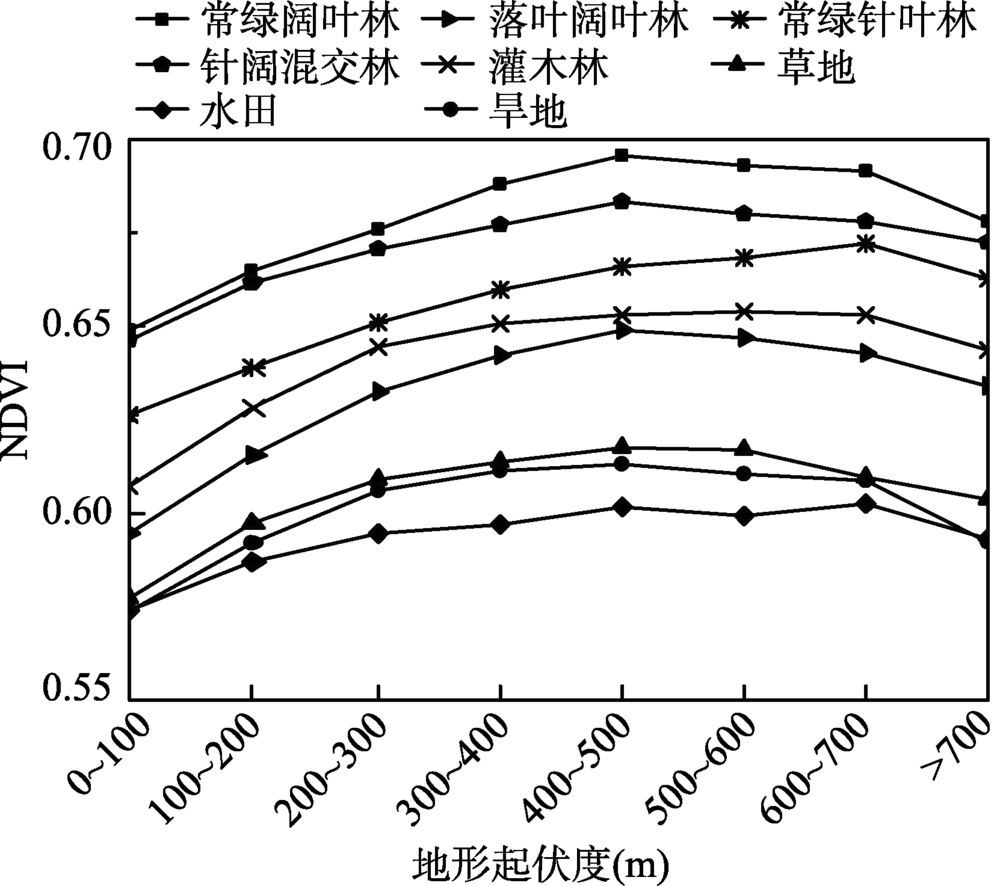

图4 NDVI在不同地形起伏度上的分布状况 Fig.4 The distribution of NDVI at different relief amplitudes

2.1.3 平均NDVI与坡度坡向 平均NDVI的坡度、坡向差异均不明显(图5)。随坡度的增加,人类活动逐渐减少,平均NDVI有上升趋势,但并不明显。平均NDVI在不同坡向上几乎无异。一般而言,在干旱和半干旱区,水分是植被生长的主要限制因子[34],阴坡蒸发较少,土壤水分压力较阳坡小,植被长势较阳坡更为茂盛;在北半球高海拔地区,温度限制植被生长[35],阳坡由于接收到更多的太阳辐射,植被生长更为良好,喀斯特山区水热条件优异,太阳辐射和水分耗散两者共同作用,使得NDVI随坡向变化并不明显。

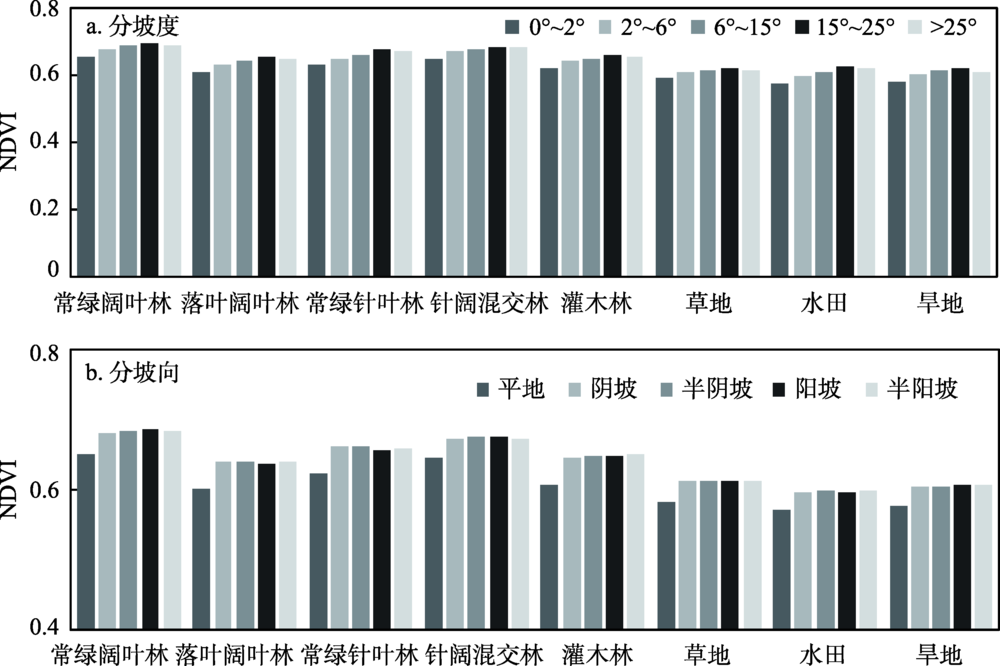

图5 不同植被类型在不同坡度、坡向上的NDVI Fig. 5 NDVI of different vegetation types on different slopes and aspects

2.2 NDVI时空变化特征

2.2.1 NDVI的时相变化 2000-2016年喀斯特山区平均NDVI呈上升趋势(图6),这与Piao等在全国范围[36]、蒙吉军等在西南地区[37]以及童晓伟等在喀斯特山区[2]的研究结果一致。

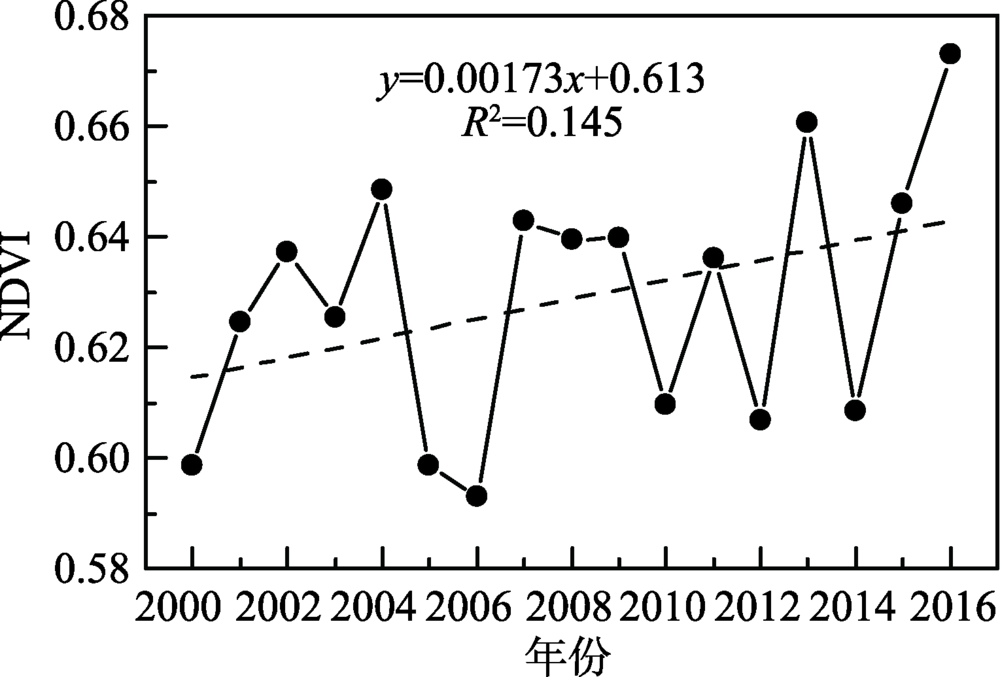

图6 2000-2016年年均NDVI变化趋势 Fig. 6 Annual NDVI changing trend from 2000 to 2016

NDVI的变化大体可以分为四个阶段:2000-2004年为增长期;2006年为NDVI的极小值点(0.59),这是由于2003年以来中国南方地区处于枯水期[38],且2006年研究区内平均温度较高,喀斯特山区溶蚀作用明显,降水沿溶蚀漏斗流入地下,难以被植被有效利用,植被生长受到抑制;2006-2009年为增长期;2010-2016年NDVI呈振荡上升的趋势。

冬季对NDVI年际变化的贡献最大(图7),平均变化率约为0.0036 yr-1,这可能与喀斯特山区近年的气候变化有关。

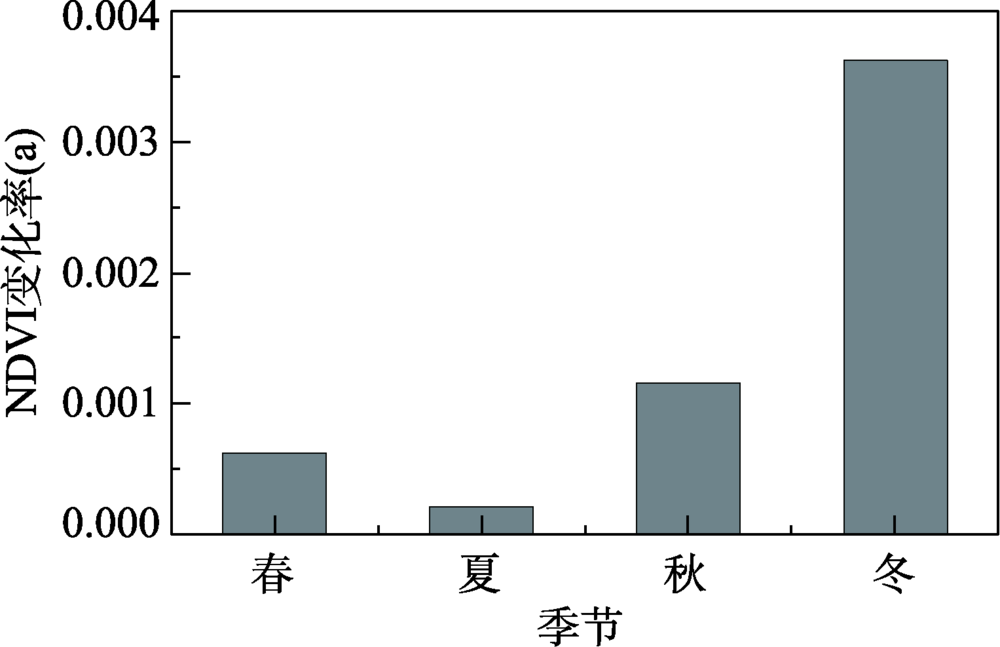

图7 2000-2016年各季节NDVI年际变化率 Fig. 7 Interannual changing rate of NDVI in each season from 2000 to 2016

2.2.2 NDVI变化趋势的空间格局 NDVI多年动态变化趋势(图8a、图8b)显示:2000-2016年,喀斯特山区73.4%的区域NDVI年均值呈增长趋势,其中21.4%的区域为显著增长(P<0.05),约3%的地区明显下降,NDVI的平均增长率约为0.0018 yr-1。说明在喀斯特山区,近年来的植树造林、退耕还林等一系列生态建设工程所带来的生态效益已有所呈现,植被绿度呈增加趋势,喀斯特山区的生态环境正趋于好转。

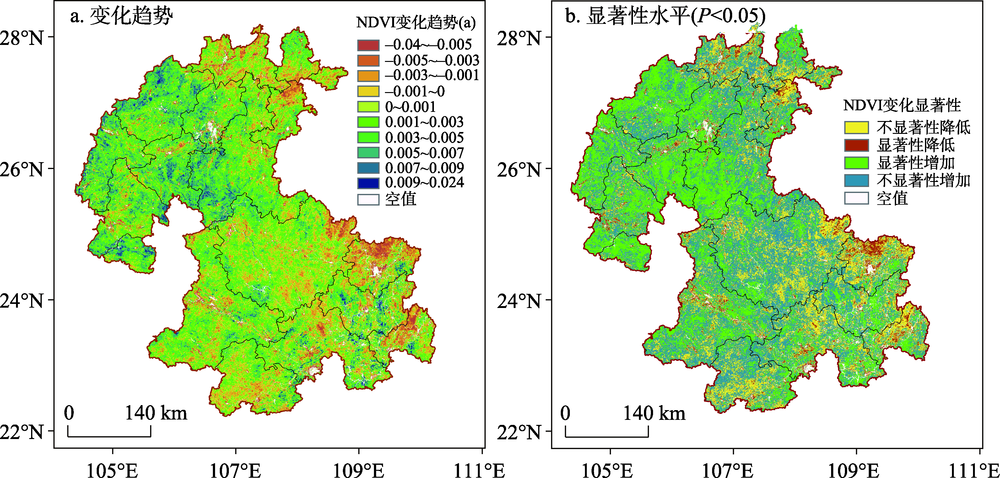

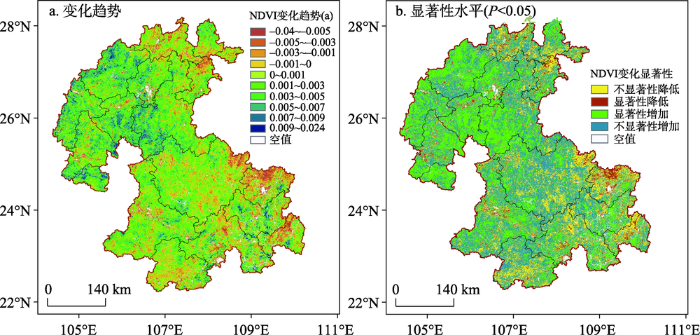

图8 2000-2016年喀斯特山区NDVI变化趋势的空间格局 Fig. 8 Spatial pattern of annual NDVI variation in karst mountainous area from 2000 to 2016

NDVI变化具有明显的空间异质性,其中较大的绿化趋势出现在喀斯特山区西部和东南部(0.007 yr-1~0.024 yr-1),包括六盘水、安顺、毕节、来宾、贵港等地(黔西南和桂中地区)。这些地区植被覆盖度较低,人口密度和载畜量水平也相对低,植被受人类活动影响较少,因此植被恢复良好。由于城市快速发展和人口积聚效应导致大量的人类活动如辟林放牧、兴建城镇等,呈下降趋势的区域主要位于东北部和中东部的城市周围(包括贵阳、遵义、铜仁、柳州等),下降幅度在-0.04 yr-1~-0.001 yr-1之间。

2.3 NDVI时空变化特征的地形效应

2.3.1 NDVI变化与海拔高度 不同的海拔高度上NDVI以增加为主,显著减少的面积占比极小,最大值仅为7%(图9)。

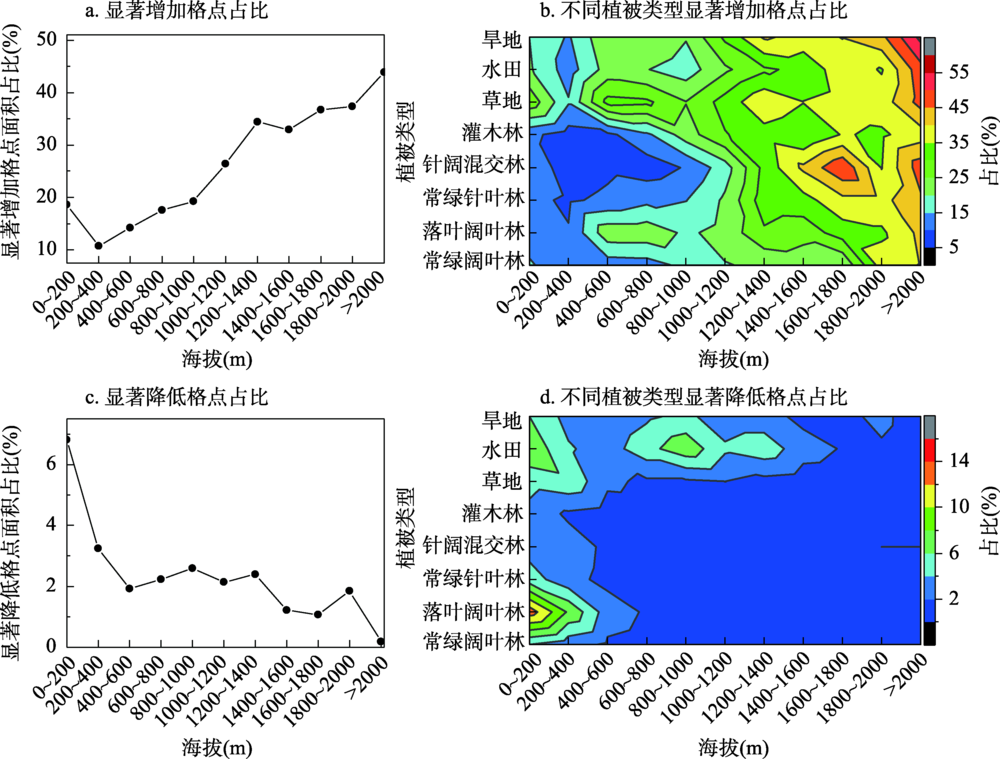

图9 NDVI显著性变化格点占比随海拔高度的变化趋势(P<0.05) Fig. 9 The percentage of pixels with significant tendency along elevations (P<0.05)

虽然不同植被类型的增长比例具有一定的海拔差异,但总体而言,喀斯特地区NDVI显著增加格点占比随海拔增加而增加,显著降低格点占比呈相反的变化趋势(图9)。其中在海拔1800 m左右针阔混交林增加显著,海拔2000 m以上,旱地增加显著,而海拔2300 m左右,低矮的草甸增多导致草地NDVI增加显著。相反的,低海拔(<600 m)植被减少显著,尤其是针叶林和阔叶林,说明低海拔地区受人类活动影响较强,大部分针叶林和阔叶林转化为建设用地,使总体植被NDVI值降低。

海拔400 m以下,植被显著增加格点占比与显著减少格点占比均呈现下降趋势,表明该海拔范围内植被变化的波动较大,在外界干扰时植被结构更不稳定[2]。海拔2000 m以上显著增加格点面积占比与显著减少格点面积占比差值最大,植被增加最为显著,主要表现在旱地和草地NDVI增长明显。这表明在高海拔地区,由于土地资源更为稀缺,人类向高海拔进行土地资源开发的程度更大,开荒的耕地和稀疏的草丛增多[38]。此外,封山育林等政策的实施也有利于高海拔地区的植被结构稳定[2]

2.3.2 NDVI变化与地形起伏度 在不同的地形起伏度范围内NDVI以增加为主,显著减少的部分极少(图10)。其中,显著增加格点占比随地形起伏度先减少后增加,谷值位于200~300 m范围内,在起伏度300 m以上,由于草地和耕地急剧增加,显著增加格点占比逐步增加。表明在喀斯特山区坡耕地耕种并未停止[2],另一方面,草地的显著增加趋势也说明一系列生态工程在喀斯特山区已发挥作用。NDVI显著降低格点面积占比随地形起伏度增加呈下降趋势,地形起伏度300 m以下,受森林植被和耕地减少影响,显著降低格点面积占比快速下降。

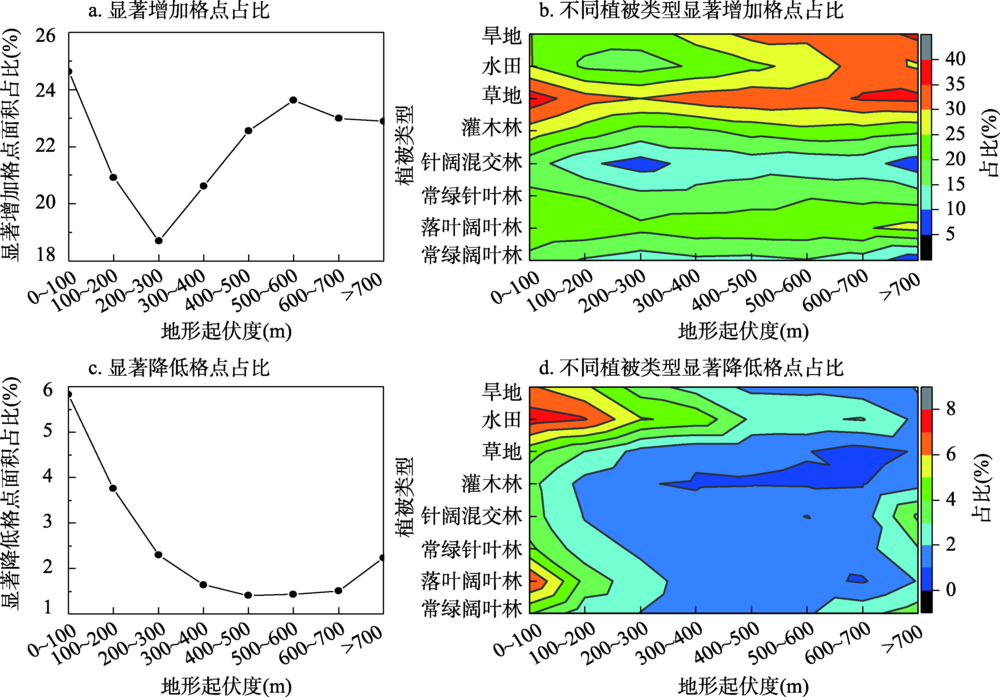

图10 NDVI显著性变化格点占比随地形起伏度的变化趋势(P<0.05) Fig. 10 The percentage of pixels with significant tendency along relief amplitudes (P<0.05)

2.3.3 NDVI变化与坡度 不同的坡度范围内植被以恢复为主(图11)。显著增长格点占比基本稳定在21%左右,且随坡度变化波动较大,10°达到峰值后下降,直到坡度大于25°时,由于草地以及耕地(包括水田和旱地)显著增加,显著增长格点面积占比有一个“陡升”的趋势。由于地少人多,喀斯特山区陡坡耕种大量存在,其中25°以上坡度垦殖占比13.14%[39],使得坡度大于25°时NDVI增长迅速。

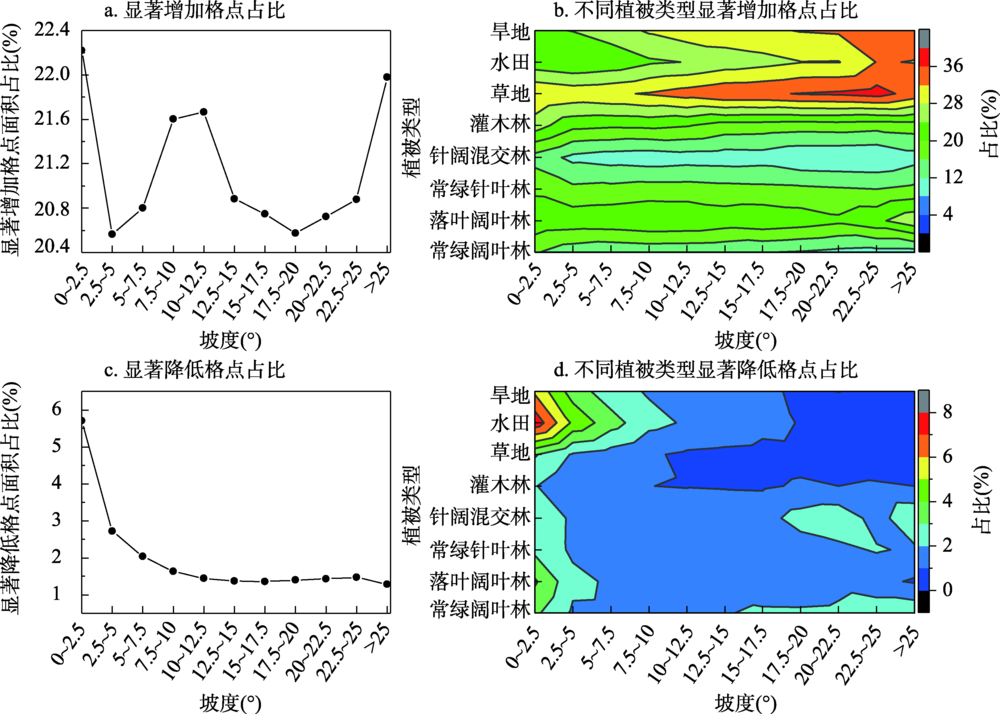

图11 NDVI显著性变化格点占比随坡度的变化趋势(P<0.05) Fig.11 The percentage of pixels with significant tendency along slopes (P<0.05)

在坡度小于10°时,NDVI显著下降格点占比随坡度增加显著减小,超过10°后趋于稳定(约为1.5%)。坡度10°以下NDVI显著减小的区域主要为耕地,由于城市化进程加快使得建筑用地面积激增,建筑用地多分布于缓坡处,喀斯特山区缓坡(0°~5°)内耕地占43.89%[40],因此,建筑用地的扩张导致耕地面积迅速减少[41]

2.3.4 NDVI变化与坡向 NDVI变化的坡向差异不大(图12)。不同坡向上,NDVI值以增加为主,然而显著变化格点的占比变化不显著。其中,耕地受坡向影响较为显著。NDVI上升格点有向半阳坡(60°~120°)倾向的趋势,降低格点主要分布在330°~0°的阴坡范围内。由此可以看出,由阴坡转向阳坡时,一开始由于太阳辐射增强,植被恢复趋势先增强,而后由半阳坡转至阳坡,人类活动影响增强,土壤养分减少,植被恢复有减弱趋势,但变化幅度较小[42]

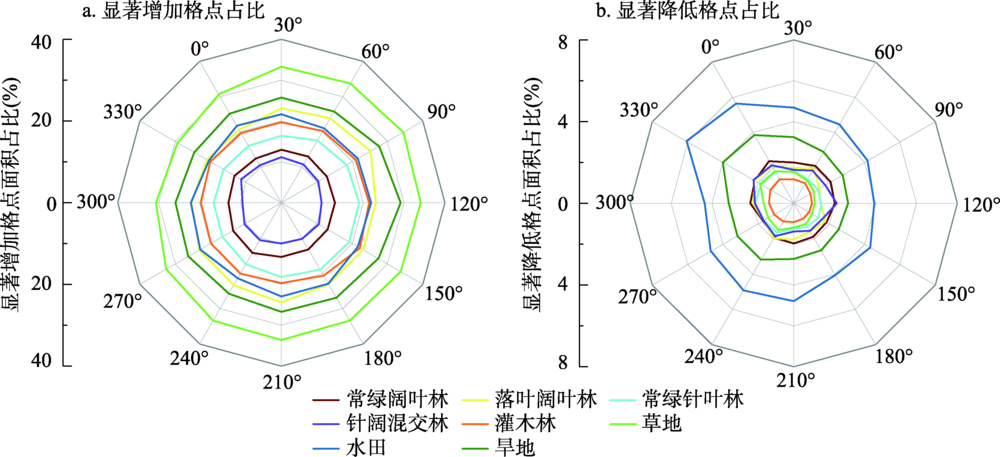

图12 NDVI显著性变化格点占比随坡向的变化趋势(P<0.05) Fig. 12 The percentage of pixels with significant tendency along aspects (P<0.05)

3 讨论

NDVI是指示植被的密度以及动态变化[24]的重要因子,与植被的覆盖密度呈正相关关系[43]。在过去的20年间,已有大量研究运用长时间序列的NDVI数据对全球、洲际和区域尺度的植被动态的年际变化进行探讨[44,45]。中国的植被覆盖有逐渐绿化的趋势[46,47]。针对喀斯特山区,据中国石漠化公报显示[48],经实地估算,2005-2011年,广西石漠化土地减少面积最多(4.53×109 m2),贵州减少2.92×109 m2;Tong等通过集成长时间序列光学、微波遥感影像、生态系统模型、气候变化及生态工程投入与治理地面核查等数据,阐明在西南喀斯特地区,植被恢复与生态工程的实施具有良好的一致性[49];也有不同研究者运用不同的遥感数据源(MODIS、AVHRR、Landsat TM、SPOT等),从不同空间尺度(县域—省域—西南部)[37,50,51]和多时间尺度[52](3年、6年、14年、32年)出发,分析得出:由于退耕还林还草等一系列生态工程以及全球气候的变化[22,23,24],喀斯特山区植被覆盖也有所增加,生态环境趋于好转。NDVI的平均增长率(0.0018 yr-1)与Piao 等[36](1982-1999年间为0.0018 yr-1)一致,略低于Tian等[31]贵州省NDVI增长率0.0028 yr-1,略高于Hou等[53]中国西南地区NDVI增长率0.0015 yr-1

对山区而言,降水量随海拔升高而增加,直到最大降水高度(降水量最大时对应的高程),而后随海拔上升而减少。最大降水高度主要发生在温暖潮湿的水流上升的区域。而气温随海拔升高呈明显下降趋势。因此,往往在海拔中段水热条件最为优越[54]。在喀斯特山区,海拔400~600 m处是植被NDVI的峰值。除优越的水热条件外,该海拔范围内地势平坦,植被类型以森林植被为主,地处广西境内的山区,城镇化速率缓慢[33],故NDVI值较高。

不同地形条件下植被变化差异明显。随海拔升高NDVI增加显著,起伏度300 m以上和陡坡(>25°)处植被恢复显著,高海拔、大起伏度、陡坡处的植被变化主要受耕地和灌丛草地影响。这表明喀斯特区域人类活动的干扰空间在扩大,趋向于高海拔和陡坡地区[55]。同时,封山育林等生态工程使得高山的灌丛、草地受人为扰动小,利于植被的恢复。而在低海拔地区,由于人类活动剧烈,针叶林、阔叶林转变为诸如建筑用地等,导致植被NDVI降低[40]。一般来说,朝南的坡面较朝北的坡面获取更多的太阳辐射,从而增强植物生长的光合作用。然而,较多的太阳辐射也会导致蒸散耗水增多,土壤水储量减少[14]。这两种影响在区域尺度上可以相互抵消,其综合效应导致坡向对NDVI变化的影响不显著。此外,由于土地利用图和遥感数据的空间分辨率的限制,不可避免地会忽略一些细节信息,这也削弱了坡向的影响。因此,今后还需要在多空间尺度上进一步进行研究。未来黔桂喀斯特山区植被生态建设与恢复应多重视低海拔、缓坡、阳坡处的植被生态治理。

4 结论

基于订正后的2000-2016年MODIS NDVI遥感数据以及黔桂喀斯特山区DEM、LUCC地理数据,结合GIS方法,探究了该喀斯特山区2000-2016年植被生长的变化趋势和垂直分布特征,得到以下结论:

(1)喀斯特山区多年平均NDVI介于0.1~0.9之间,均值约0.63,植被分布总体呈现中部高,西北、东南低的趋势。年均NDVI随海拔和地形起伏度变化呈单峰曲线,峰值分别在400~600 m和400~500 m左右,随坡度和坡向的变化并不明显。

(2)近年来喀斯特山区植被绿化情况转好,冬季对植被变化的影响最大。2000-2016年NDVI的平均增长率约为0.0018 yr-1P<0.05)。75%左右的区域植被呈现增长趋势,其中超过20%的区域显著增长,不到5%的地区明显下降。较大的绿化趋势出现在喀斯特山区西部和东南部,包括黔西南和桂中地区。呈显著下降趋势的区域主要位于东北部和中东部,包括贵阳、遵义、铜仁、柳州等。

(3)喀斯特2000-2016年间的植被变化受地形因子影响,尤其是海拔高度。年均NDVI呈增长趋势的比例随海拔的增加而增加,低海拔及地形起伏度较小处,人类活动的干扰导致植被恢复慢;坡度10°左右时植被绿化趋势较为显著,得益于坡耕地耕种以及草地的自然恢复,大地形起伏度(>300 m)和陡坡(>25°)处植被恢复呈快速增长趋势;NDVI随坡向的变化不明显,但当坡向由阴坡转向阳坡,植被恢复呈先增强后减弱的趋势,未来喀斯特山区应进一步加强低海拔、缓坡、阳坡处的植被生态治理。

The authors have declared that no competing interests exist.
